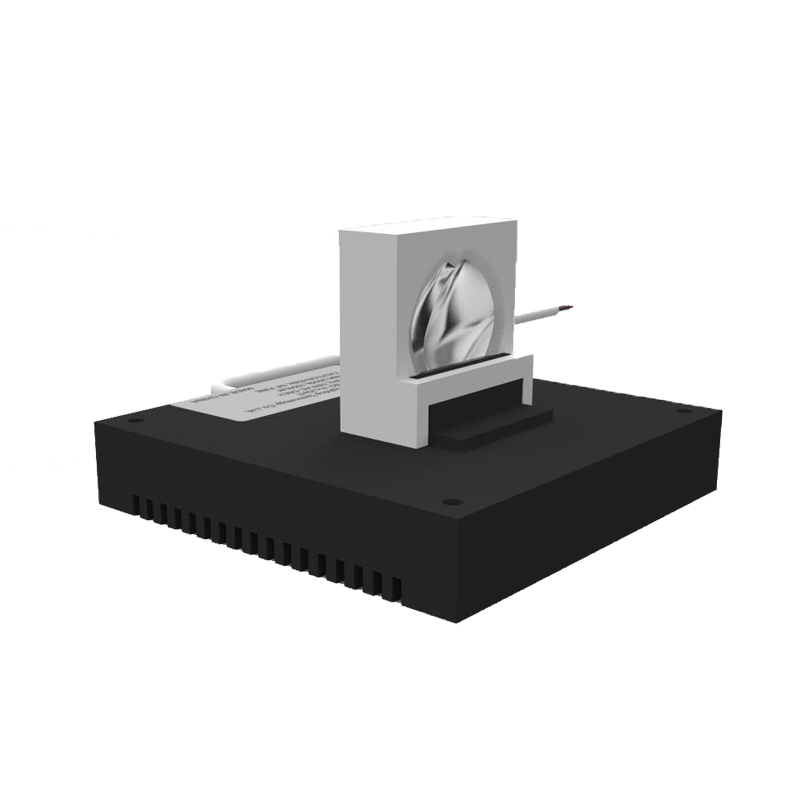

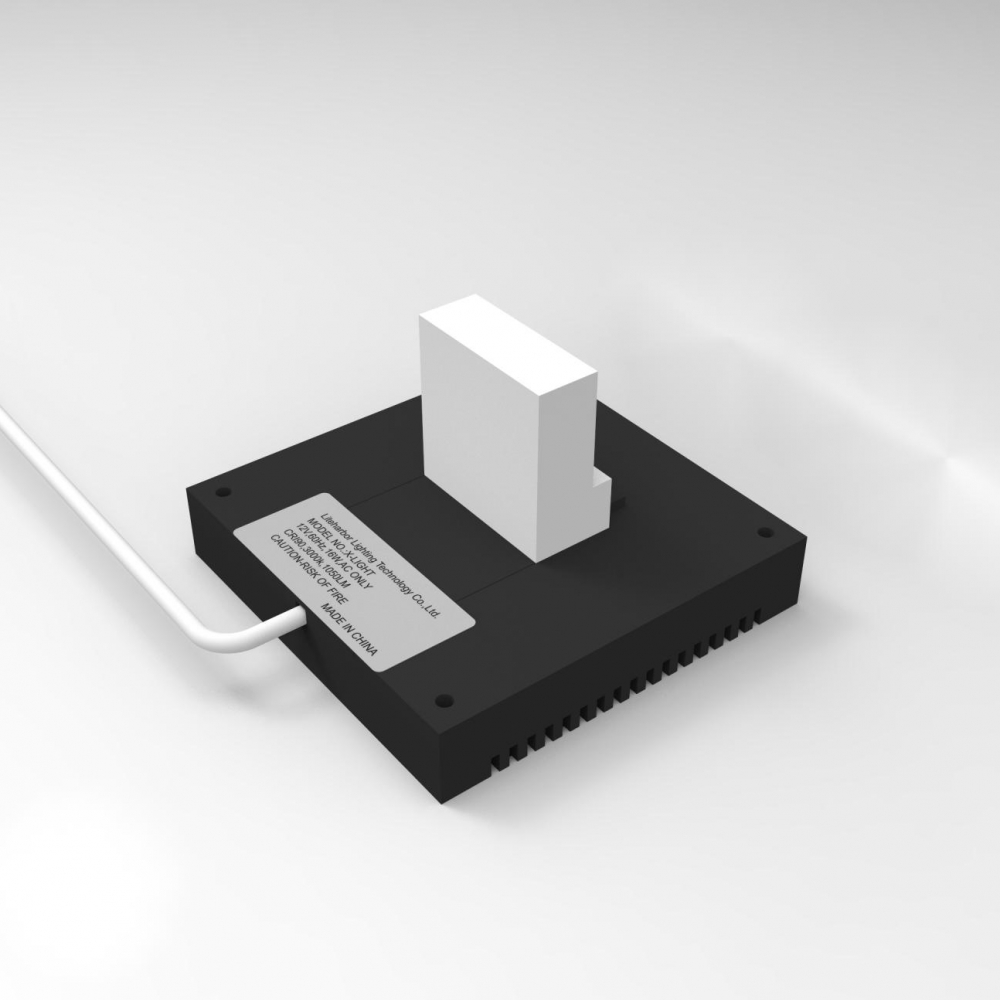

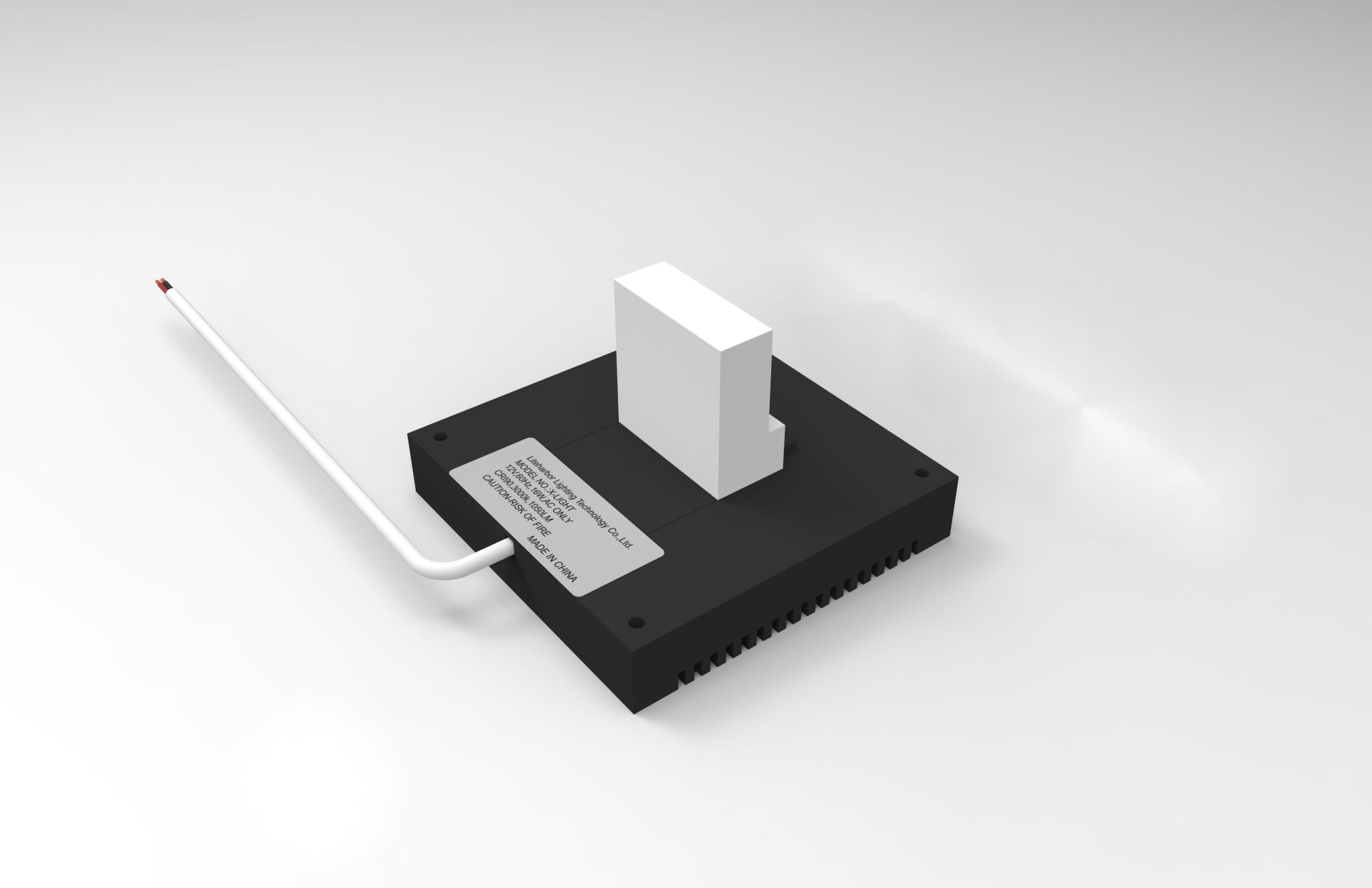

Wall Washer 16W Square LED Mini Spotlight Commercial Lighting
ITEM No.： X-Light-W-S
Shape : Round/Square
Input Voltage : 120-277V AC
Lamp Voltage : 24V
Lumen : 1400lm/lamp
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K
Beam Angle : 30 Degree
Lifespan : 100000 HoursLED Mini Spotlight
Description
X-Light III series recessed downlight offers small aperture lighting without compromise and embraces a spoon-reflector that sits invisibly in a semi-recessed square. Specification grade fixed parts come in half-round or square , CCT’s and CRI options. Curated for discreet, yet impressive projection. X-Light III’s design flawlessly illuminate walls and works of art. it features a highly configurable single point source LED package and is capable of delivering up to 1500 lumens.
Features
– X-Light III with square and half-round fixed parts.
– Use big brand COB light source with high luminous efficiency and long service life (50000 hours).
– Professional light distribution devices, no glare, perfect control light, spot even transition.
Electrical Specifications
– 16W Power consumption.
– The input voltage of each lamp is 42V/24V, the load termin can be used independently.
– Hard anodized aircraft grade aluminum heat sink.
– Operating Temperature:-10℃-50℃Light output.
Lamp Body
– 1500lm source light output.
– The anti-pull device is hidden inside the lamp body.
– Color rendering index 90.
– High performance big brand LED at various color temperatures available.
Installation Types&Applications
– Wall-washing .
– Can be installed in drywall, wood, stone, and metal ceilings.
– Apply to residential, offices, hotels, shopping mall stores,receptions, corridors,exhibition center, galleries etc.
Listing / Warranty
– ETL listed to US and Canadian standards for damp location.
– 5 Year Limited Warranty
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
X-Light Ⅲ
|
liteharbor | 986 KB | 314 |
