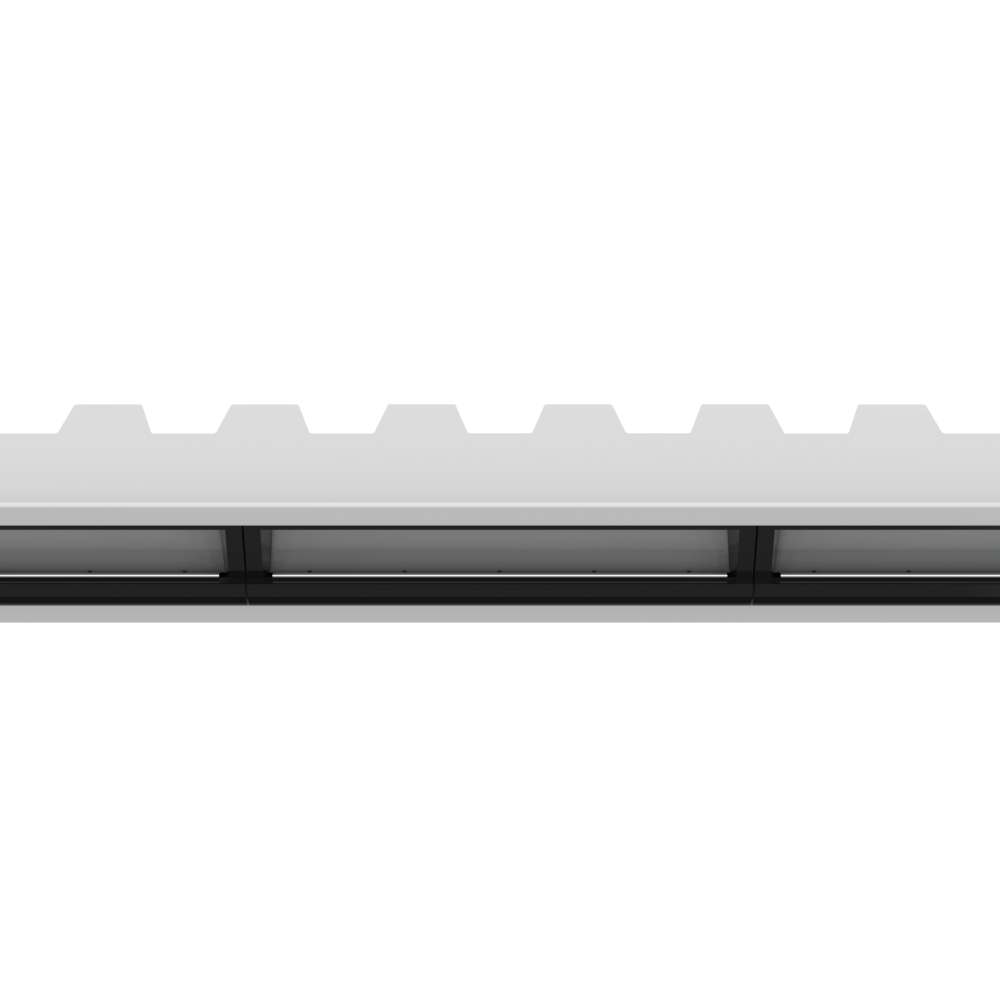

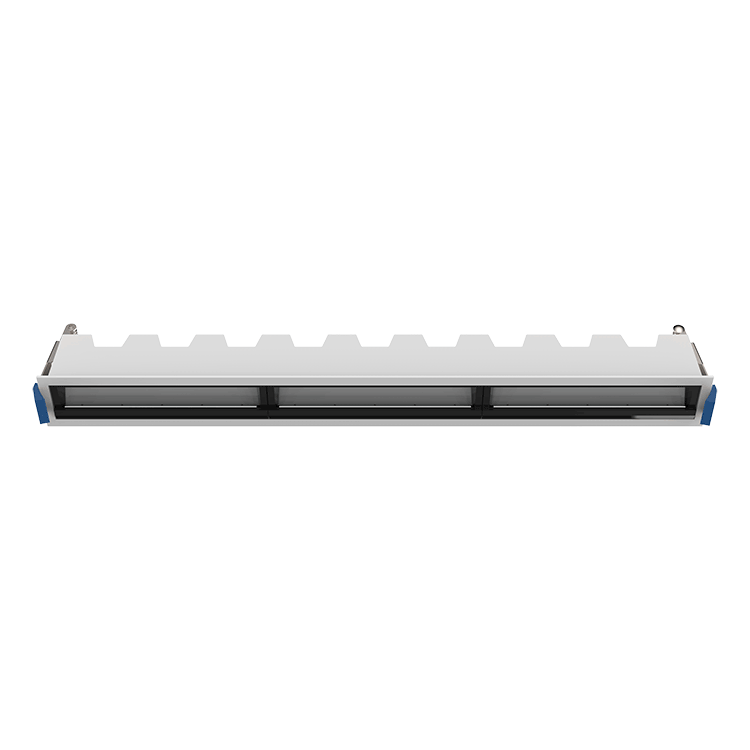

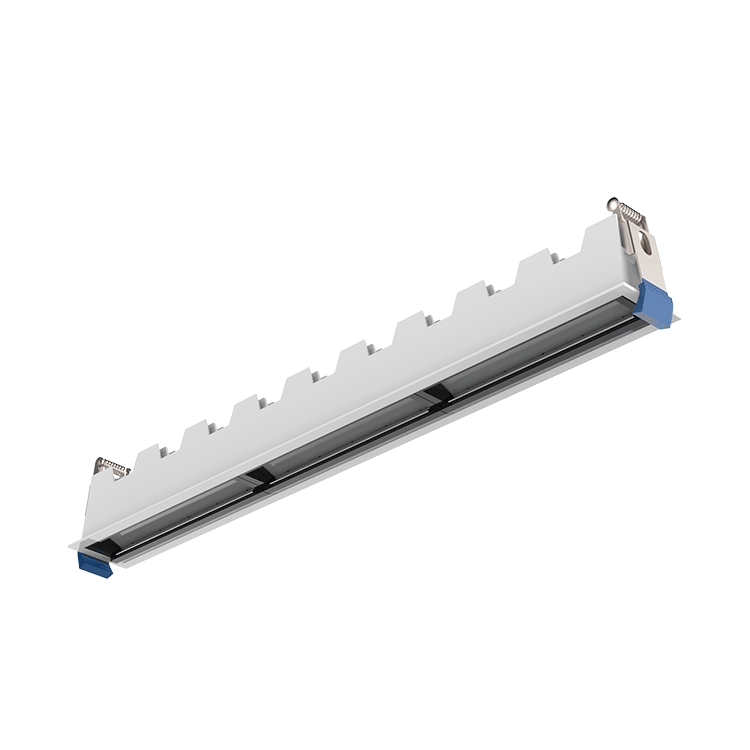

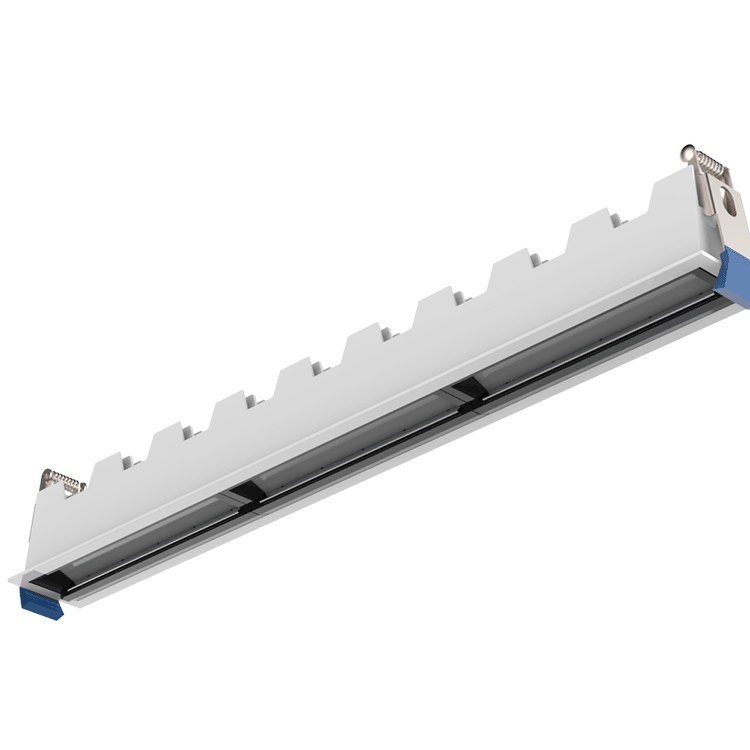

Trimmed/Trimless Remodel Wall Wash Mini LED Multiple Downlight with 15 Lamps
ITEM No.: G4011A-15-W
Watt : 2W/Lamp
Series : Mini LED Multiple Downlight
Application : Commercial/Residential
Description
The Mini multiple downlight Series is equipped with5, 10 and 15 lamps. The miniaturized design, die-cast aluminum body, and high-performance acrylic diffuser provide uniform scientific light output for maximum visual comfort. It can illuminate the whole wall without any shadow.
Miniaturized recessed rectangular luminaire with LEDs. Wall Wash downlight with matte black or matte white louver finish Regressed LED source for enhanced glare control Proprietary wall wash optic and lens Shallow housing and integral drivers standard Remodel housing available with integral driver enclosure 1% dimming standard with several integral driver options.
Features
– The simplified retrofit installation can be used in both new and existing spaces.
– Dimmable with a variety of commonly used drivers.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.
Specification
– Luminaire efficacy: 65 to 80lm/W
– Source: White LED module (LM-80 tested) 2700K~6000K CRI>90
– Lumen maintenance: 90% of initial lumens at 50 000 hours (L90) (LM79 tested)
– Optics: Low luminance: Spot optic, with pptibeam technology
– Material: Body and Heat sink: Die-cast aluminum, Reflector and Baffle: Thermoplastic

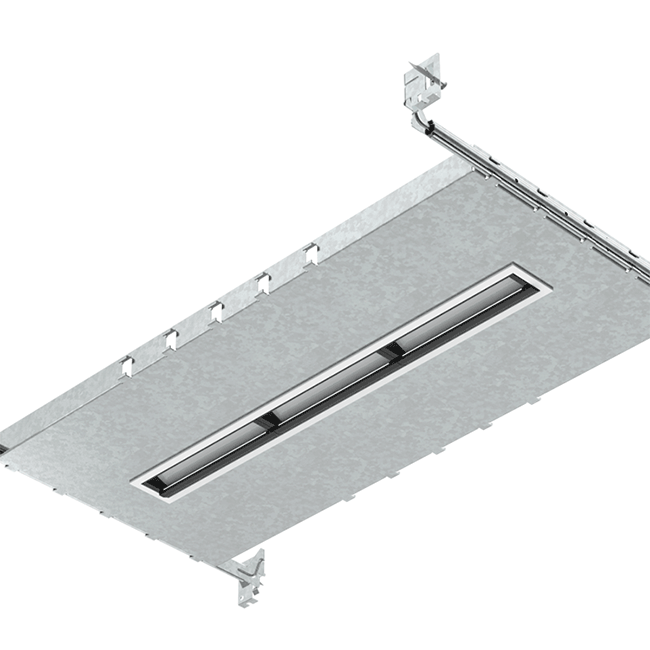

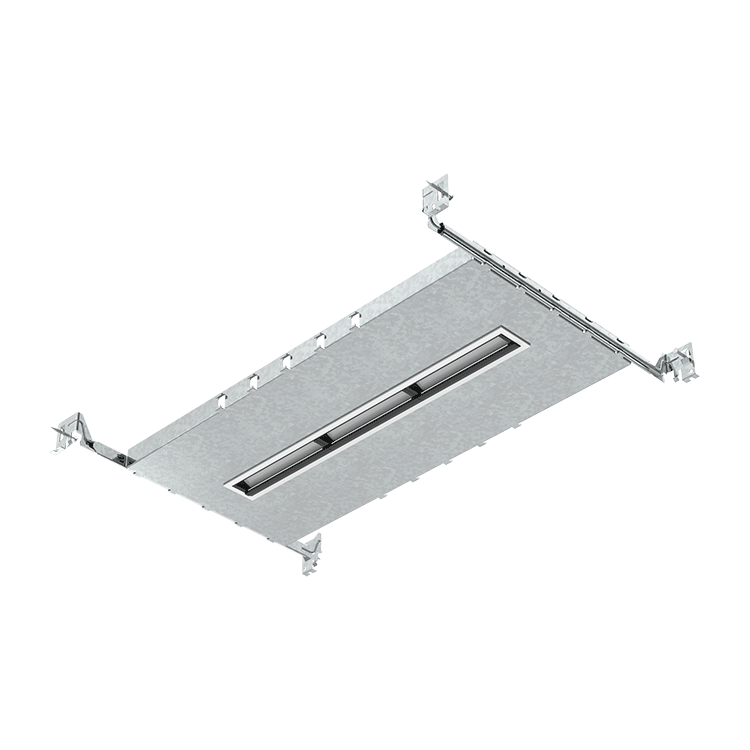

– Mounting: New construction installation or remodel installation
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting
and accent lighting.
Parameter
Wattagte | 2W/Lamp |
Lumen | 65-80lm/W |
Optics | 30° |
CCT | 2700K ~ 6000K |
Material | Die-cast Aluminum |
Dimming | Non/TRIAC/0~10V |
Finish | White/Black/Silver |
