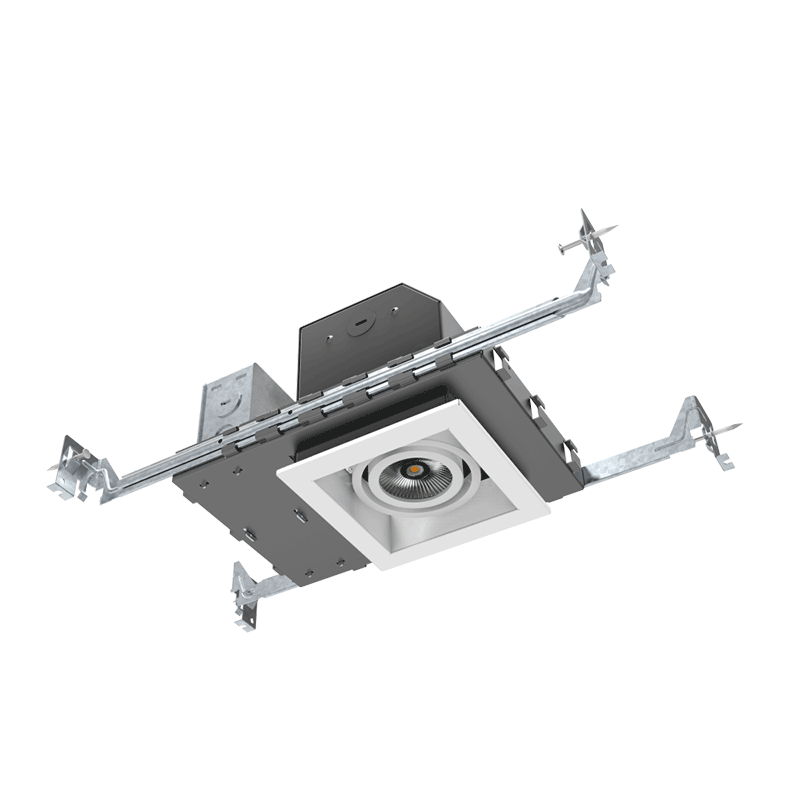

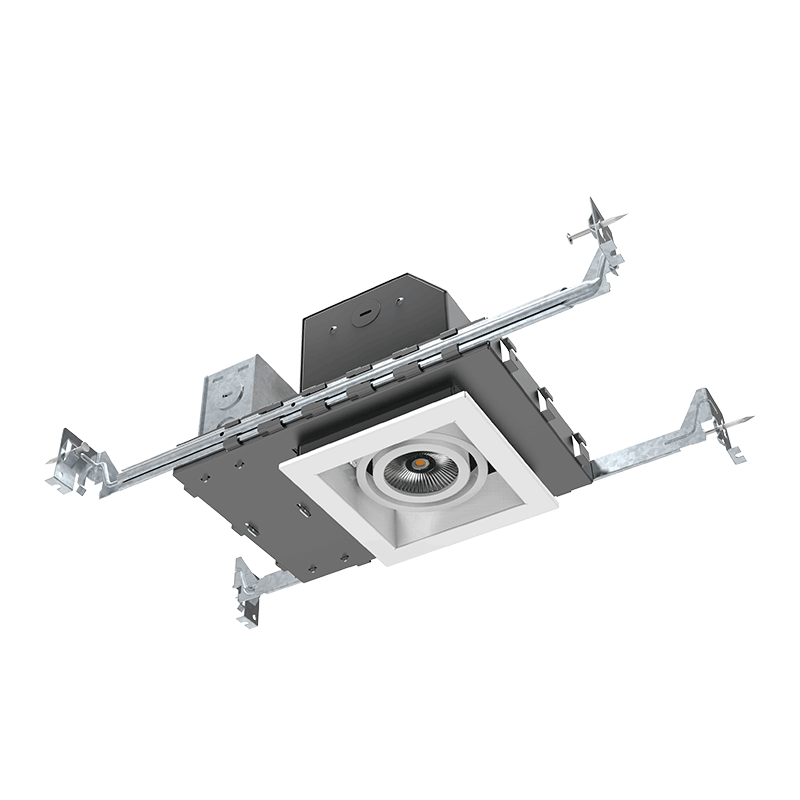

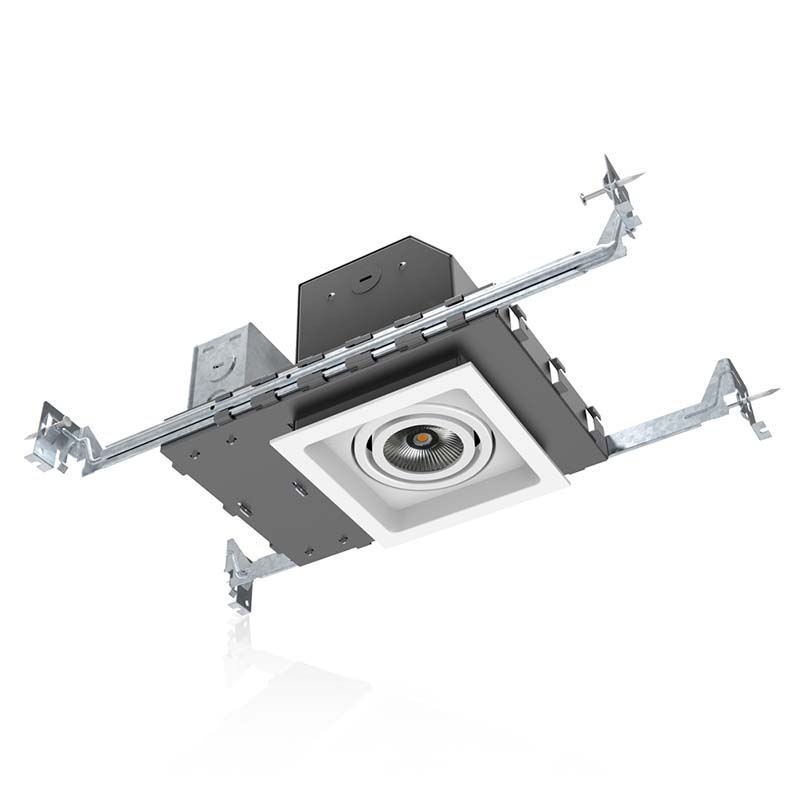

1-Lamp New Construction Mini Multiple COB Recessed Square Downlight For Hotel Lighting
ITEM No.： G4011-E-COB
Series : LED Multiple Downlight
Light Source : COB LED
Input volt : 120V-277V
CCT : 2700-6000k
Material : Gauge Steel
Description

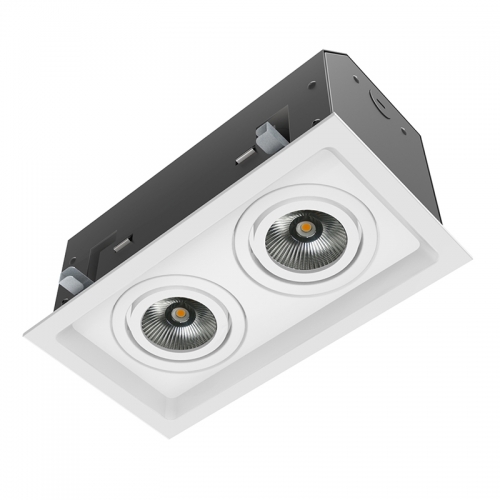

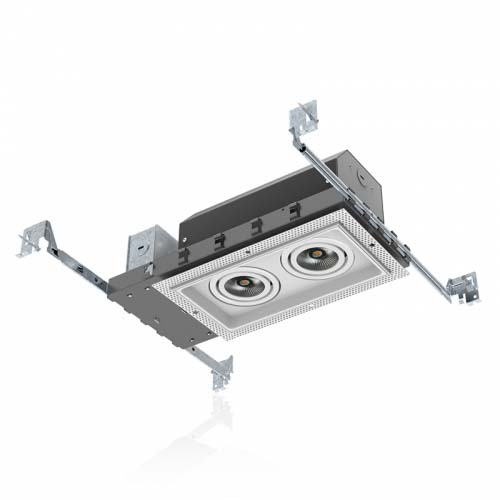

Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments.The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control and 3CCT Switch.
Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt,360° horizontal rotation
3CCT range changeable
Construction
Trim and housing are constructed of Gauge Steel.
Mounting
Supplied with 4 ways hanger bar, adjustable from 14½”-25″ to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting “screw-nail” for ease installation. Can be accommodate a 1/2″ to 1 1/4″ ceiling thickness.
Light Source
High output COB LED
Dimming
Dimmable to 10% with most brand dimmers.
| Item | G4011-E1-COB | ||||||||||
| Input Voltage | AC 90-305V 50/60Hz | ||||||||||
| Luminous Efficiency | 70 LM/W | ||||||||||
| Lumens | 700lm | ||||||||||
| Color Temperature | 2700-6500K | ||||||||||
| Material | Gauge Steel | ||||||||||
| Power Factor | ＞ 0.98 | ||||||||||
| Rated Power | 10/Lamp | ||||||||||
| Dimming* | Triac Dimming/0-10V Dimming | ||||||||||
| Lamp | COB | ||||||||||
| Color Temperature | 2700-6500K/3CCT | ||||||||||
| Finish | Black or White powder coat | ||||||||||
| General Listing | ETL listed. Damp listed. |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-COB
|
liteharbor | 2 MB | 1070 |
| 2 |
G401X-E1-COB-3CCT
|
liteharbor | 2 MB | 334 |
