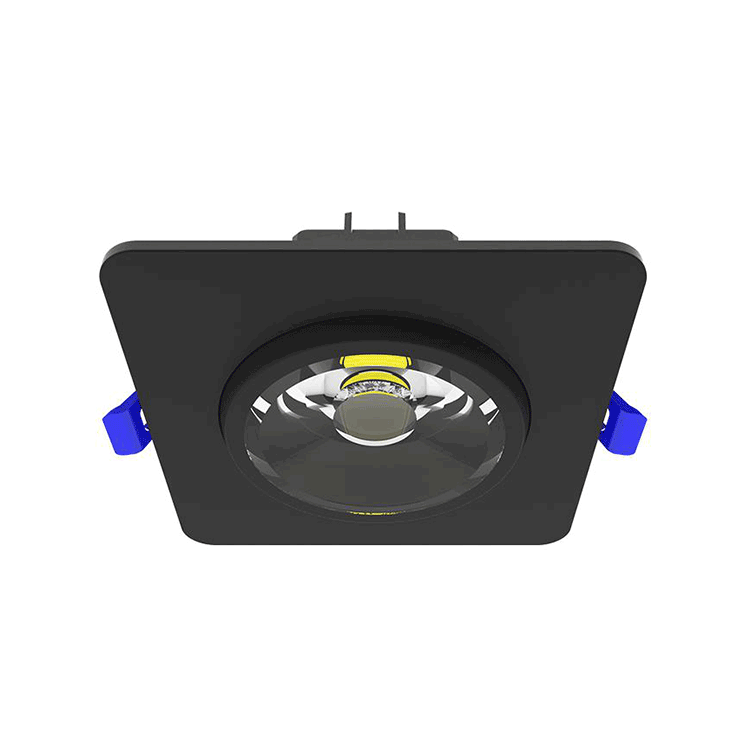

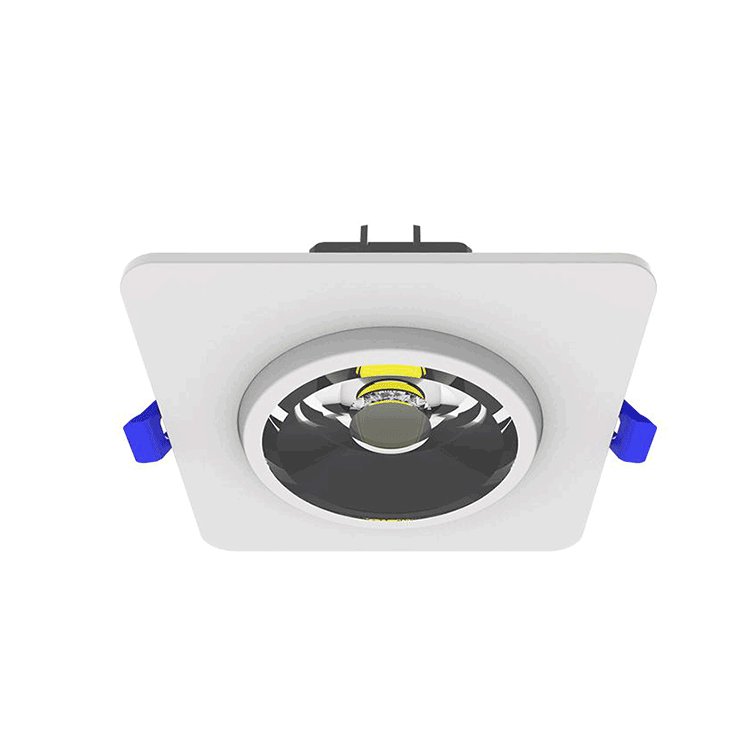

Liteharbor 4 Inch Square Shape LED Eyeball Recessed Downlight
ITEM No.： BEL4-A-S02
Watt : 15W
Voltage : AC 120V
Driver : Liteharbor
DESCRIPTION
This eyeball downlight has a 30º tilt and combined with the swivel gives you more flexibility on where your light is directed. With IC rated JUNCTION BOX, IC Rated Integrated fixture, installed in direct contact with insulation layer.
FEATURE
– Swivel eyball trim allows the flexibility focus light on a specifc area and create the ambiance you desire.
– Protected LED driver performs at 120V.
– This fixture is built to last with maintenance-free energy efficient LEDs.
– Beam Angle: 30/60 Degree.
– IP Rating: IP44.
Applications
Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail
Specification
| Watt | 15W |
| Voltage | AC 120V |
| Driver | Liteharbor |
| PF | >0.9 |
| Dimming | Dimmable |
| Lumen | 1200lm |
| Light Source | COB |
| CRI | 90+ |
| Beam Angle | 30D/60D |
| CCT | 2700K-5000K |
| Material | Aluminum |
| Finish | White/Black |
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BEL4-A-S02
|
liteharbor | 445 KB | 314 |
| 2 |
BEL4-A-S02-NC
|
liteharbor | 475 KB | 301 |
