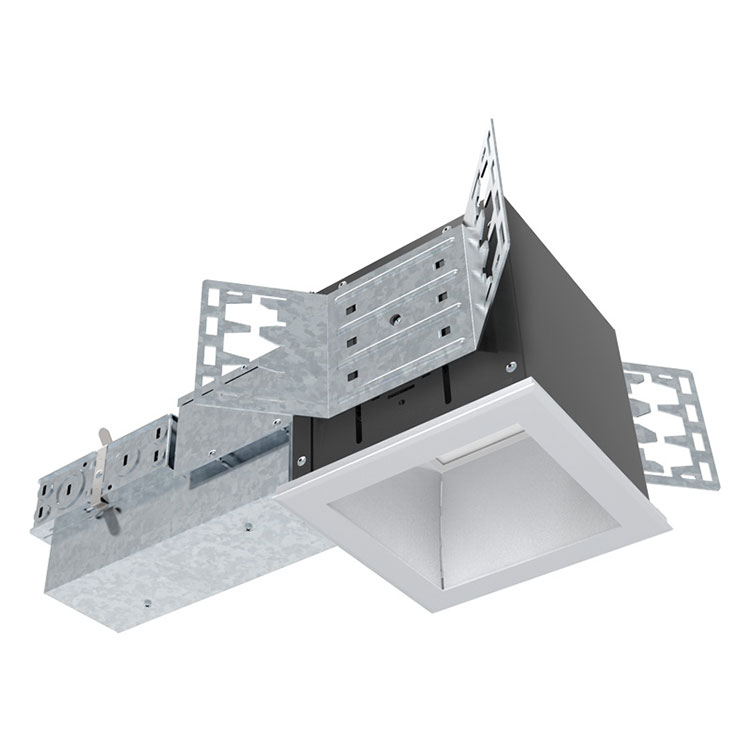

Light Project PoE Lighting 4″ Architectural LED Commercial Downlights Supplier
ITEM No.： AL4-FS
Power : 12/18/24W
Voltage : 24V
Power factor : PF>0.98
CRI : 80+CRI/90+CRI
Beam angle : 120° optional
Dimmable : Dim
Lifespan : 50000H
Certification : ETL
DESCRIPTION
- Architectural LED luminaire, iron shell spray production, with anti-corrosion shell.
- Emergency system is available.
- LED light source using high quality, high lumen and high CRI LED bead.
- Square emitting surface, with uniform light distribution, high luminous efficiency.
- Energy saving, long lifespan even without maintain.
- New generation of cold light source, save power, excellent casting performance with far and high light casting compare to common fluorescent and energy saving lamp.
FEATURES
- PoE scheme or LED quick connector provided. .
- Robust, durable and lightweight.
- Power & CCT Tunable, convenient inventory and cost savings.
- No Flickering, noise or RF interference
- Easy to install to suspended ceiling grids.
- Up to 80lm/W, total 960lm to 2560lm delivered lumens（2700K-6000K）.
- 5 classic color temperatures tunable (2700K, 3000K,3500K, 4000K, 5000K)，RGB+Tunable White(2700K-6000K) and Tunable White（1800K-6000K）.
- Beam angle: 120゜

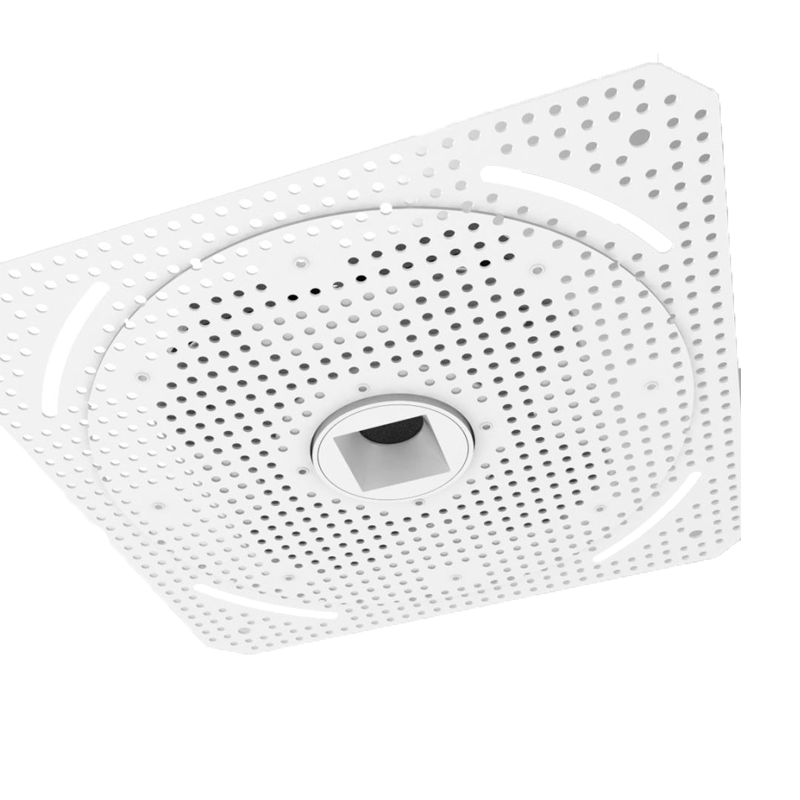

- Available in trimmed or trimless.
APPLICATIONS
- Hospitality
- Kitchens
- Villa
- Hotels
- Indoor residential
- Museum
- Offices
- Shopping mall stores
- Commercial
Widely used for commercial and residential applications.
SPECIFICATION
| DESCRIPTION | AL4-FS-A | AL6-FS-A | ||||||||||||||||||||||||
| Wattage | 12W | 18 | 24 | 18W | 24W | 32W | ||||||||||||||||||||
| Luminous Flux | 960lm | 1440lm | 1920lm | 1440lm | 1920lm | 2560 | ||||||||||||||||||||
| Lumens / Watt | 80lm/w | |||||||||||||||||||||||||
| CRI | 82+ / 92+ | |||||||||||||||||||||||||
| Colour Temperature | 2700K, 3000K, 3500K, 4000K,5000K, 6000K /3CCT/5CCT | |||||||||||||||||||||||||
| Driver Input | DC 24V | |||||||||||||||||||||||||
| Dimming | Tunable White / Dim to Warm | |||||||||||||||||||||||||
| Optics | 120° | |||||||||||||||||||||||||
| Location | Insulated Ceiling & Damp Locations | |||||||||||||||||||||||||
| Finish | White,Black,Satin Nickel | |||||||||||||||||||||||||
| Working Humidity | 10% – 70% | |||||||||||||||||||||||||
| IP Rating | 20 | |||||||||||||||||||||||||
| UGR | <18 | |||||||||||||||||||||||||
| THD | <20% | |||||||||||||||||||||||||
| Installation | Recessed Mounted | |||||||||||||||||||||||||
| Lifespan | 50,000 Hours at 70% Light Output | |||||||||||||||||||||||||
| Executive Standard | ETL | |||||||||||||||||||||||||
| Warranty | 5 Year Limited | |||||||||||||||||||||||||
Lampshade
Aluminum fog reflective reflector, high light uniformity.
With marbles design mode, the overall height of the size is controlled, smooth appearance, excellent visual effects.
Light Source Radiator
High light transmittance, strong light diffusion performance, no shadow no glare.
Point light source emitting turned into spherical light emitting.
Milky white light transmission rate reach 90% above.
Excellent concealed light source, achieve the best light transmission rate without seeing the LED lamp bead.
Outstanding heat dissipation aluminum material, the temperature is guaranteed to be the touch temperature below.
POE SOLUTION
Liteharbor PoE solution with single/double ethernet is guaranteed to be the touch temperature below. interface“One in” or “One in One out”design. It’s provides RJ45 wiring system suitable for CAT5, CAT6, CAT7, CAT8 Ethernet Cable with UL listed . PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.
| TOP POE BENEFITS INCLUDE |
| ◆ Further Cost Savings |
| ◆ Easy, Low-Voltage Installation |
| ◆ Helps future-proof buildings |
| ◆ Enhanced Flexibility and Control |
| ◆ Enables software control integration |
| ◆ Social Benefits |
| ◆ Robust, Secure and Reliable |
Locating Part
Locating part, easy for installation,will not cause abnormal phenomena such as deformation. Resolved the problem of product is not centered.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
AL6-FS-POE
|
liteharbor | 798 KB | 221 |
| 2 |
AL4-FS-POE
|
liteharbor | 823 KB | 226 |
