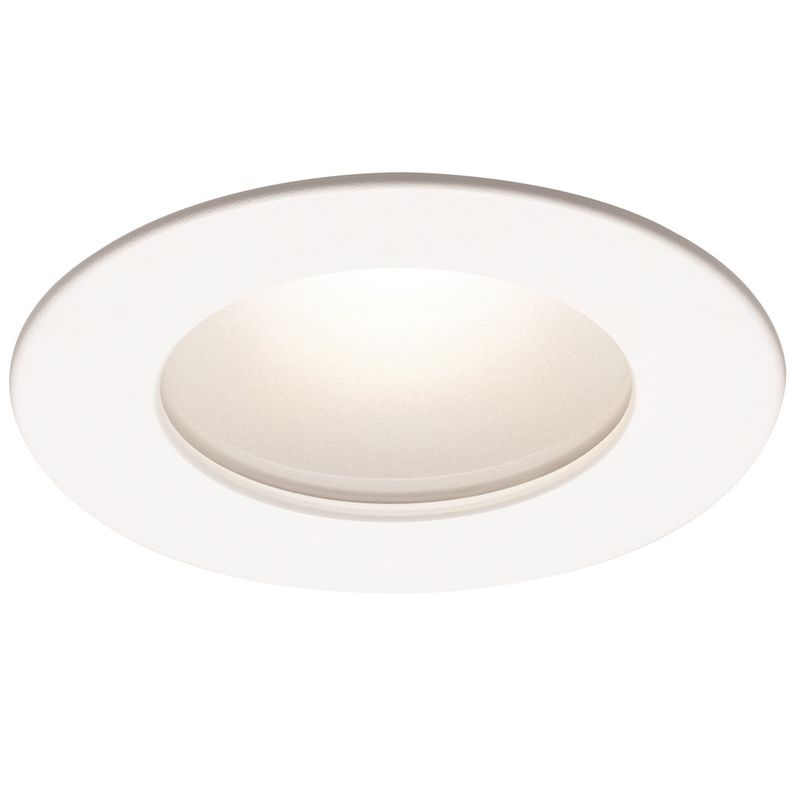

Contrast Lighting UR4C 4″ 15W Round Shower Trim
Series：UR4C
ITEM No.：DR4C
Cut Hole Size : 4-1/4″
Watt：10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Round
Description
Round 4in dedicated LED shower trim of the Urbai recessed LED series available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This model is offered with a choice of three lenses. The clear lens is suggested as the standard lens for the UR4C model – a clear and a frosted clear center lenses are available too for a greater lumen output. With its standard frosted lens, the UR4C model delivers 584 lumens @ 3,000K – 58 lm/W – in performance 1. Four color temperatures are offered, with an 80+ CRI (2,700K and 3,000K only) or a 90+ CRI; only a flood beam of 48° is offered with this model. The warm dimming option is available in performance 2 (15W) and two dimming options are possible: ELV and 0-10V. Six trim finishes and three reflector finishes are suggested to maximize the integration of this model.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 764LM/ 1048LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 48° |
| Luminous Size: | φ 3 in |
| Height: | 4-5/16 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 330 |
| 2 |
DG-FT_UR4C_EN
|
liteharbor | 7 MB | 153 |
