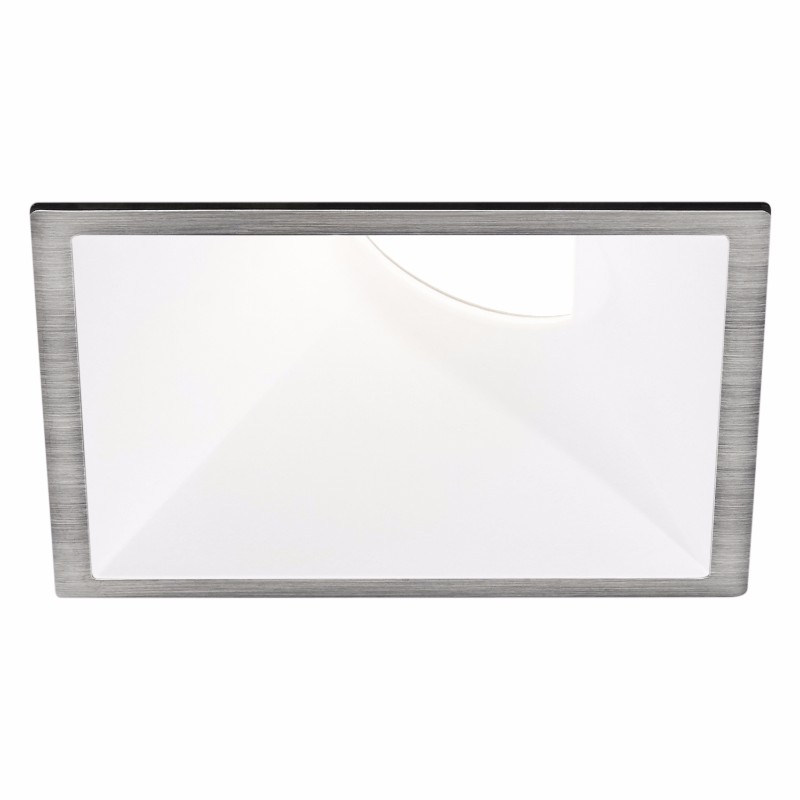

Contrast Lighting Ardito A4SWW 4″ 14W Square Wall Wash LED Downlight
Series：A4SWW
ITEM No.：DL4SWW
Watt：14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Square
Description
Ardito dedicated LED ultra-thin square 4” wall wash trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, new construction and IC Air Tight housings. Available in seven trim finishes and three reflector finishes, this model is preferred with a matte black reflector for optimal wall wash and quiet ceiling effects. A standard frosted lens is offered with A4SWW to obtain a uniform lighting with 443 lumens @ 3,000K in performance 1 (14W). Four color temperatures are offered along with the warm dimming and color tuning options.

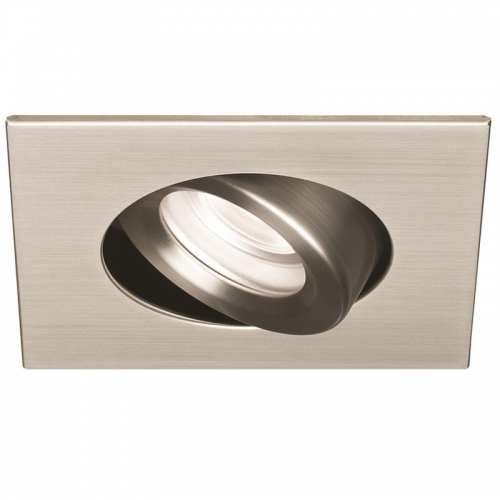

Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″

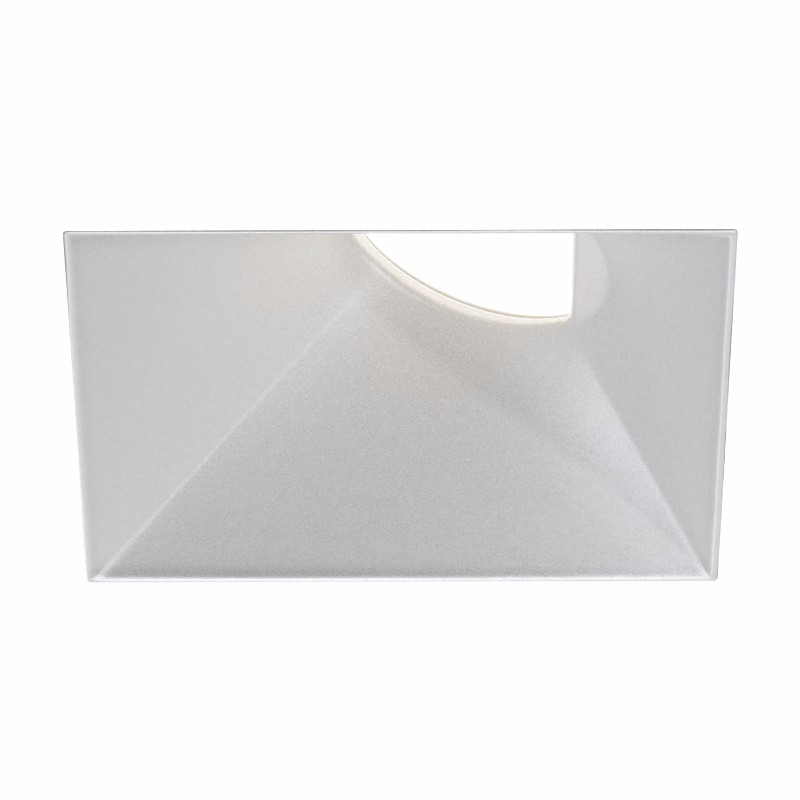

Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
| Volts: | 120V-277V |
| Watts: | 14W |
| Lumens: | 470 – 670LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 54° |
| Luminous Size: | 4 in |
| Height: | 6-3/8 in |
| Green: | Energy Star, Yes |
