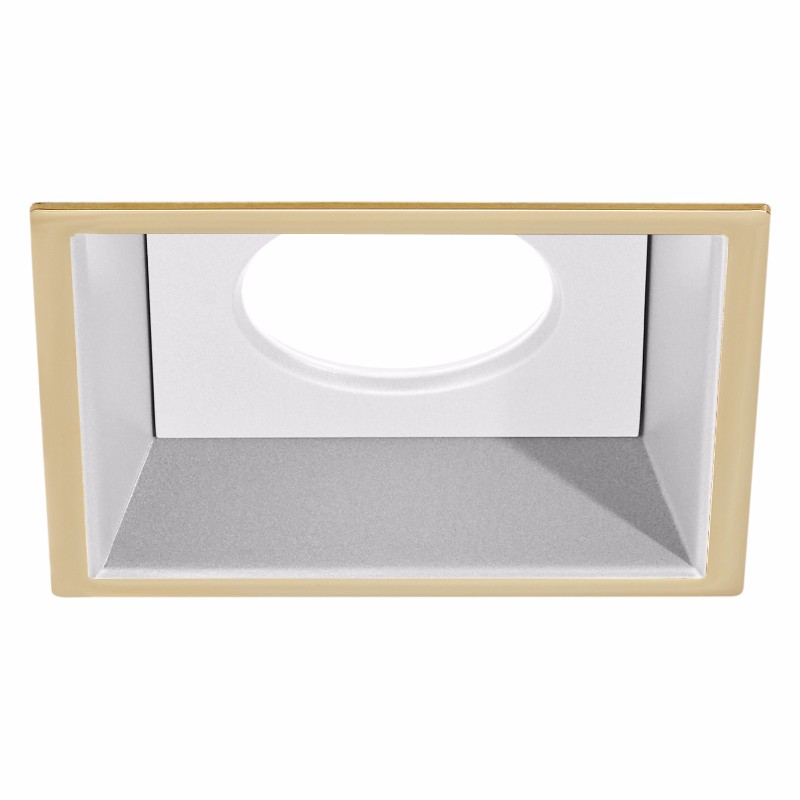

Contrast Lighting A4SSF 4″ 14W Square Regressed Shower LED Downlight
Series:A4SSF
ITEM No.:DL4SSF
Watt:14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Square
Description
Ardito dedicated LED ultra-thin square regressed shower 4” trim available in performance 1 (14W) and performance 2 (23W) with the remodeler, the new construction and the IC Air Tight housings. The high-quality A4SSF trim is offered with a standard frosted lens and delivers between 1,050 and 1,550 lumens. Available in seven trim finishes, four reflector finishes and four color temperatures, this shower trim, discrete and elegant, fits into any decor. With its top of the line components, this product offers two dimming options: ELV and 0-10V.
Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″
Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
Volts: | 120V-277V |
Watts: | 14W |
Lumens: | 470 – 670LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 44° |
Luminous Size: | 4 in |
Height: | 6-1/8 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-Ardito_EN | liteharbor | 9 MB | 369 |
2 | DG_A4SSF-TR_EN | liteharbor | 6 MB | 153 |
3 | DG_A4SSF_EN | liteharbor | 6 MB | 163 |
