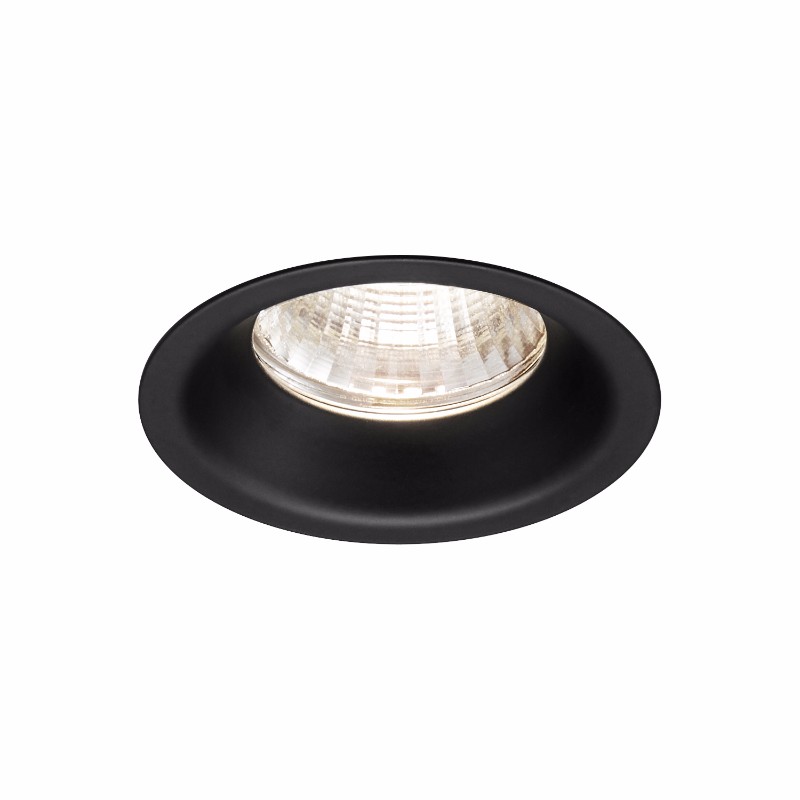

Contrast Lighting A2RFR-TR 2.5″ 14W Round Regressed LED Downlight
Series：A2RFR-TR
ITEM No.：DL2RFR-TR
Watt：14W
Finish : Matte White/Matte Black/Natural Anodized
Shape :Round
Description
Ardito dedicated LED ultra-thin round, fix, regressed 2-1/2” flangeless trim available with the remodeler housing in performance 1 (14W), in four color temperatures and with a 90+ CRI. Over 1,000 lumens are delivered by this small model, with a performance of more than 78 lm/W @ 3,000K. The beams produced by the optic reflector have very clean angles of 15° for the spot beam, 24° for the narrow flood beam, 36° for the flood beam and 60° for the wide flood beam. Ideal for architectural and eclectic applications, the A2RFR-TR model comes in eight reflector finishes for better integration. This model allows for a perfectly flush finish with the ceiling with a surprising ease of installation.
The MIPA2R mud-in-plate has to be ordered separately to install the trims without a flange, for a minimalist and contemporary look. The plates will be delivered quickly to the job site in order to install them in the ceiling prior to the arrival of the trims.
Innovative tilt/swivel design
Put light where you want it with 359° rotation and 30° tilt on all Ardito 3.5″ and 4″ Adjustable versions… including 3.5″ Regressed Adjustable trims.
Convenient aiming
Lock in place desired tilt/swivel position using a single adjustment screw from below.
Ardito Ambience. Accent Lights. Aperture Selection.
Introducing a wide variety of style-matched Ardito & Urbai luminaires working together to meet the most demanding application requirements.
• Dimming, including warm dimming and color tuning.
• Lighting effects through tilt/swivel accent luminaires
• Three aperture sizes: 2.5″, 3.5″ and 4″
• 3.5″ and 4″ models produce equivalent lumen outputs
• Special application products for wallwashing and wet locations
Ardito Series
Three aperture sizes: 2.5″, 3.5″ and 4″
Trim and Trimless (-TR) available.
Warm Dimming
Lumenetix Araya DDM1 Dynamic Dimming Module delivers dimmable white light that
warms as it dims, reproducing dimming conditions of a halogen lamp. It allows the
user to change the color temperature from 3,050K at full intensity to 1,800K at minimum
intensity, while ensuring a 90+ CRI over the full dimming range.
Specifications
| Volts: | 120V-277V |
| Watts: | 14W |
| Lumens: | 825LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 25°/44° |
| Luminous Size: | ø2-1/2 in |
| Height: | 4-5/8 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-Ardito_EN
|
liteharbor | 9 MB | 369 |
| 2 |
DG_A2RFR_EN
|
liteharbor | 4 MB | 299 |
| 3 |
DG_A2RFR-TR_EN
|
liteharbor | 10 MB | 296 |
