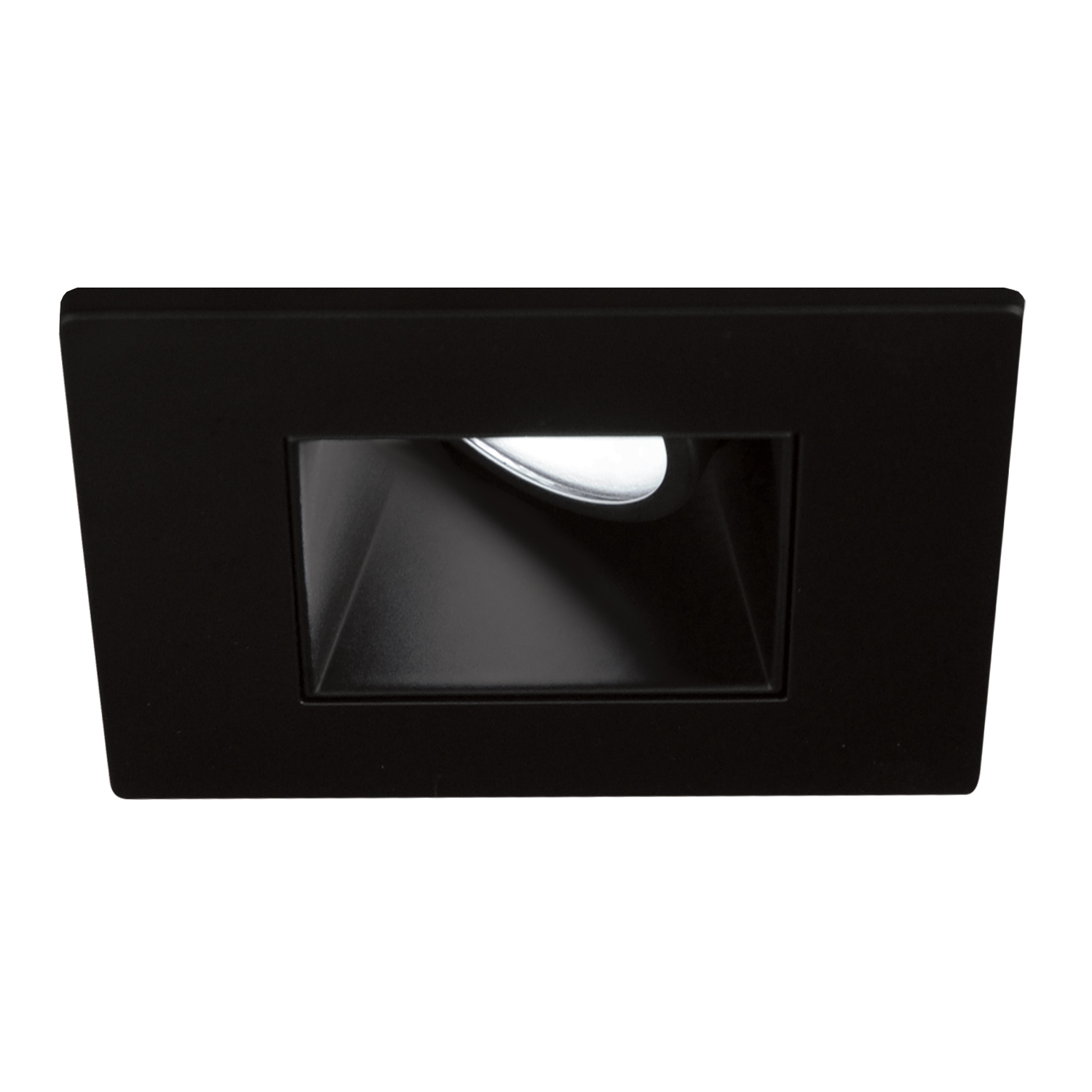

Contrast Lighting UR4L 4″ 15W Square Adjustable Regressed Trim with Square Opening
Series：UR4L
ITEM No.：DR4L
Cut Hole Size : 4-1/4″
Watt：10W/15W/24W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square adjustable regressed dedicated LED 4in trim of the Urbai recessed LED series made by Liteharbor available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). The Urbaï collection housings are compatible with 120V and 277V input and two dimming options : ELV and 0-10V.This trim model is offered with a choice of six lenses or without a lens. The standard UR4L model, without a lens, offers a good lighting performance with 872 delivered lumens @ 3,000K in performance 1, for 87 lm/W. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with the 2,700K and the 3,000K, along with three beam angles : the 16° spot beam, the 32° narrow flood beam, and the 48° flood beam. The warm dimming option, that dims the light from 3,050K to 1,800K, is available in performance 2 (15W). Eight trim finishes and three painted reflector finishes are offered to maximize the integration of the product.
Specifications
| Volts: | 120V-277V |
| Watts: | 10W/15W |
| Lumens: | 550LM/ 725LM/1050LM |
| Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
| Bulb Type: | LED |
| Color Finish: | Matte White/Matte Black/Natural Anodized |
| Beam Spread: | 16° /32°/48° |
| Luminous Size: | 2-1/2 in * 2-1/2 in |
| Height: | 4-1/2 in |
| Green: | Energy Star, Yes |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
DG-URBAI
|
liteharbor | 20 MB | 341 |
| 2 |
DG-FT_UR4L_EN
|
liteharbor | 8 MB | 177 |
