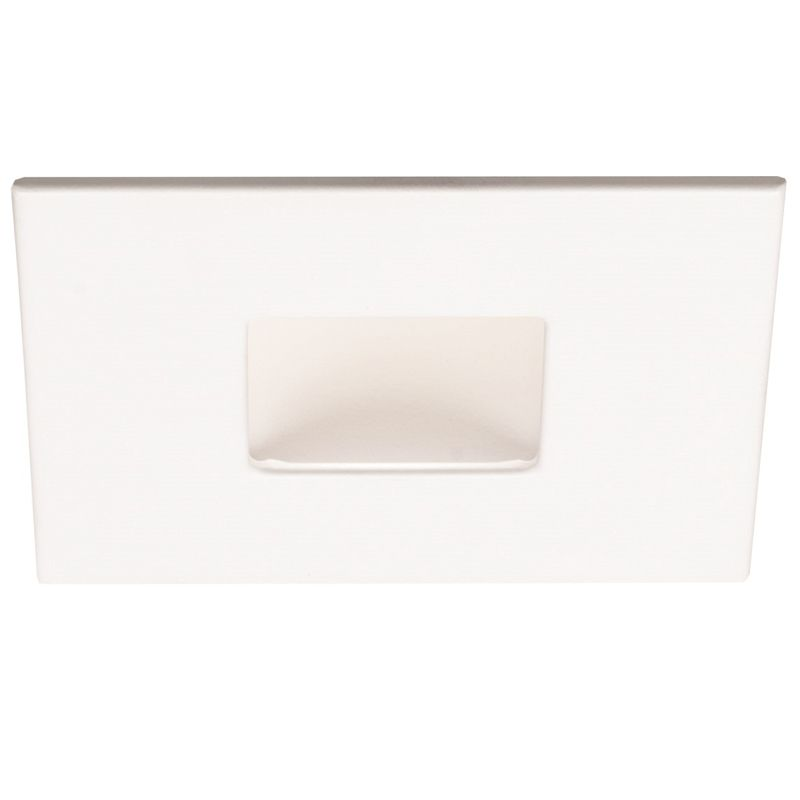

Contrast Lighting UR3J 3-3/4″ Square 10W Downlight Regessed Trim With Square Pinhole Aperture
Series:UR3J
ITEM No.:DR3J
Cut Hole Size : 3-3/4″
Watt:10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square downlight regressed 3-1/2in trim with 1-3/4in pinhole aperture of the Urbai recessed LED series made by Liteharbor. This model is available with the remodeler housing and the new construction housings, all compatible with 120V and 277V input as well as with ELV and 0-10V dimming. Offered in performance 1 (10w) and performance 2 (15W), the UR3J model has a good lighting performance with 625 delivered lumens @ 3,000K in performance 1. The warm dimming option delivers dimmable light from 3,050K to 1,800K. Six lenses are available as options and the standard product has no lens. Six trim finishes and three reflector finishes make for a maximized integration of the product. Four color temperatures are offered with a 90+ CRI, and the 80+ CRI is available with 2,700K and 3,000K. A spot beam of 16° and a narrow flood beam of 32° are available with the pinhole aperture.
Specifications
Volts: | 120V-277V |
Watts: | 10W/15W |
Lumens: | 561LM/ 770LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 16°/32° |
Luminous Size: | L 1-3/4 in * W 1-3/4 in |
Height: | 4-1/4in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-URBAI | liteharbor | 20 MB | 341 |
2 | DG-FT_UR3J_EN | liteharbor | 7 MB | 193 |
