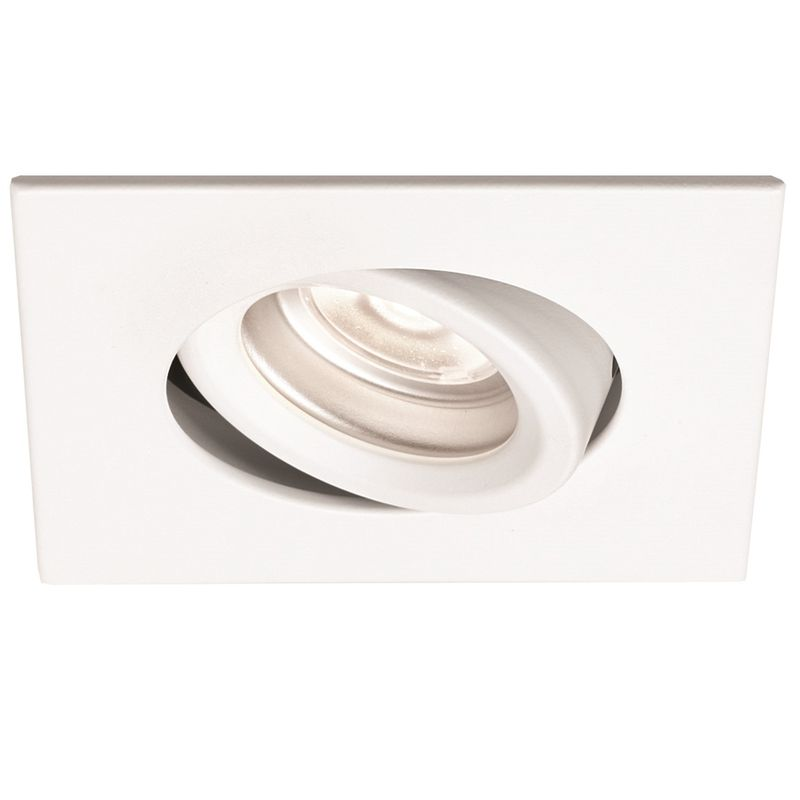

Contrast Lighting UR3B 3-3/4″ 10W Square Adjustable Trim
Series:UR3B
ITEM No.:DR3B
Cut Hole Size : 3-3/4″
Watt:10W/15W
Finish : Matte White/Matte Black/Natural Anodized
Shape : Square
Description
Square adjustable 3-1/2in dedicated LED trim of the Urbai recessed LED series made by Liteharbor available with the remodeler housing and the new construction housings in performance 1 (10W) and performance 2 (15W). This popular model is offered with a choice of 6 lenses – or without a lens – and 6 trim finishes. Four color temperatures are offered with a 90+ or an 80+ CRI (2,700K and 3,000K only) along with a 16° spot beam, a 32° narrow flood beam and a 48° flood beam. The warm dimming option – from 3,050K to 1,800K – is available in performance 2 (15W). The housings allow for a wiring on 120V or 277V input and two dimming options: ELV or 0-10V. The UR3B model offers a great performance delivering 1018 @ 3,000K – 101 lm/W – in performance 1.
Specifications
Volts: | 120V-277V |
Watts: | 10W/15W |
Lumens: | 915LM/ 1256LM |
Color Temperature: | 2700K/3000K/3500K/4000K/Warm Dimming |
Bulb Type: | LED |
Color Finish: | Matte White/Matte Black/Natural Anodized |
Beam Spread: | 16°/32°/48° |
Luminous Size: | φ 2-1/2 in |
Height: | 3-3/4 in |
Green: | Energy Star, Yes |
Product File Download
# | File | Added by | File size | Downloads |
---|---|---|---|---|
1 | DG-URBAI | liteharbor | 20 MB | 341 |
2 | DG-FT_UR3B_EN | liteharbor | 2 MB | 181 |
