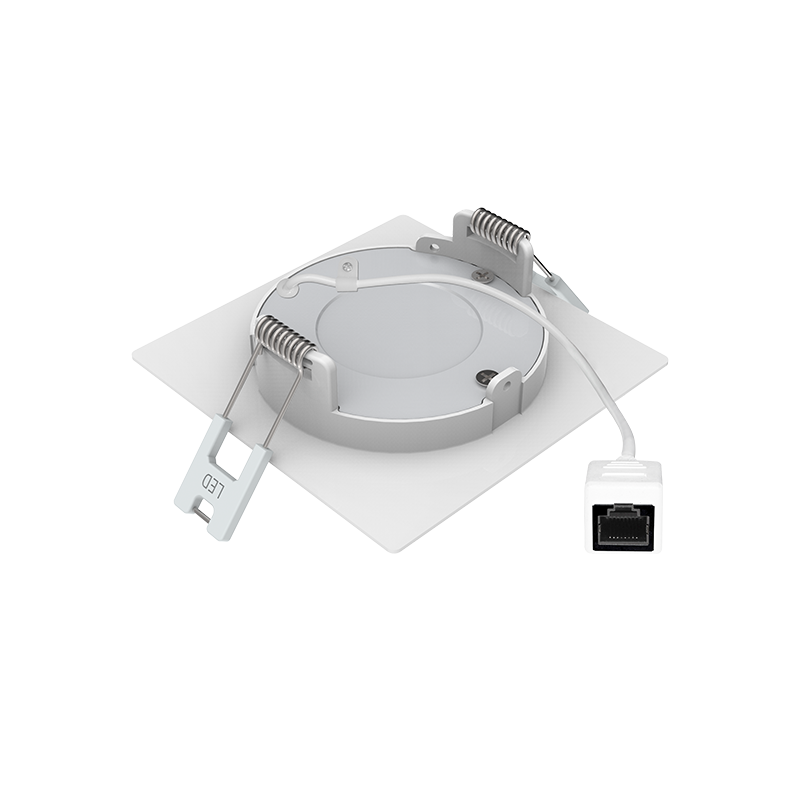

6″ LED Recessed Square LED Slim Panel Light with RJ45 Adaptor
ITEM No.： BL6-S301A
Shape : Square
Input Voltage : 24V(PoE Scheme)
Lumen : 1080lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT/5CCT
Beam Angle : 120 Degree
Lifespan : 100000 HoursLED Mini Spotlight
DESCRIPTION
Liteharbor ultra thin recessed LED Square Panel is absolutely perfect for tight spaces, soffits and insulated and dropped ceilings. This LED is 14 watts and replaces a 70 watt halogen Save up to 80% energy for same light output.The thin Panel profile with spring clips allows for quick and easy installation. Ideal for confined spaces and suitable for damp locations.
FEATURES
PoE scheme or LED quick connector provided.
Available in all 6″ round openings.
Retrofit or New Construction.
No Housing Required.
Robust, durable and lightweight.
3CCT/5CCT range changeablen,convenient inventory and cost savings.
1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
Connection: RJ45 Adaptor suitable for CAT6/CAT7/CAT8 cables
Easy to install to suspended ceiling grids
No UV, IR or Mercury
Anti-glare
SPECIFICATION
| DESCRIPTION | BL4-301A | BL6-301A | ||||||||||||||||||||||||
| Wattage | 9W | 14W | ||||||||||||||||||||||||
| Luminosity | 700lm | 1080lm | ||||||||||||||||||||||||
| Lumens / Watt | 100lm/w | 100lm/w | ||||||||||||||||||||||||
| CRI | 90+ | 90+ | ||||||||||||||||||||||||
| Colour Temperature | 3000K, 4000K, 6500K/3CCT/5CCT/RGBW | 3000K, 4000K, 6500K/3CCT/5CCT/RGBW | ||||||||||||||||||||||||
| Driver Input | DC 24V | DC 24V | ||||||||||||||||||||||||
| Dimming | RGB+W / Tunable White | RGB+W / Tunable White | ||||||||||||||||||||||||
| Location | Insulated Ceiling & Damp Locations | Insulated Ceiling & Damp Locations | ||||||||||||||||||||||||
| Finish | White,Black,Satin Nickel | White,Black,Satin Nickel | ||||||||||||||||||||||||
| Dimensions | ∅4-3/4”* H 15/16” | ∅6-7/8”* H 15/16” | ||||||||||||||||||||||||
| Wire | Cat5/Cat6 | Cat5/Cat6 | ||||||||||||||||||||||||
| Working Temperature | -20°C to +50°C | -20°C to +50°C | ||||||||||||||||||||||||
| Working Humidity | 10% – 70% | 10% – 70% | ||||||||||||||||||||||||
| IP Rating | 20 | 20 | ||||||||||||||||||||||||
| UGR | <18 | <18 | ||||||||||||||||||||||||
| Beam Angle | 120° | 120° | ||||||||||||||||||||||||
| THD | <20% | <20% | ||||||||||||||||||||||||
| Installation | Recessed Ceiling Mount | Recessed Ceiling Mount | ||||||||||||||||||||||||
| Lifespan | 50,000 Hours at 70% Light Output | 50,000 Hours at 70% Light Output | ||||||||||||||||||||||||
| Executive Standard | ETL/ENERGY STAR | ETL/ENERGY STAR | ||||||||||||||||||||||||
| Warranty | 3 Year Limited for Fixture & Driver | 3 Year Limited for Fixture & Driver | ||||||||||||||||||||||||
MOUNTING
Cut hole in ceiling and snap fixture in opening with attached spring clips.
APPLICATIONS
- hospitality
- Retail
- Kitchens
- hotels
- Museum
- indoor / outdoor residential,
- offices
- Commercial
- shopping mall stores
LISTING / WARRANTY
- ETL to US and Canadian standards for damp location W/Feed through.
- 3 Year Limited Warranty.
