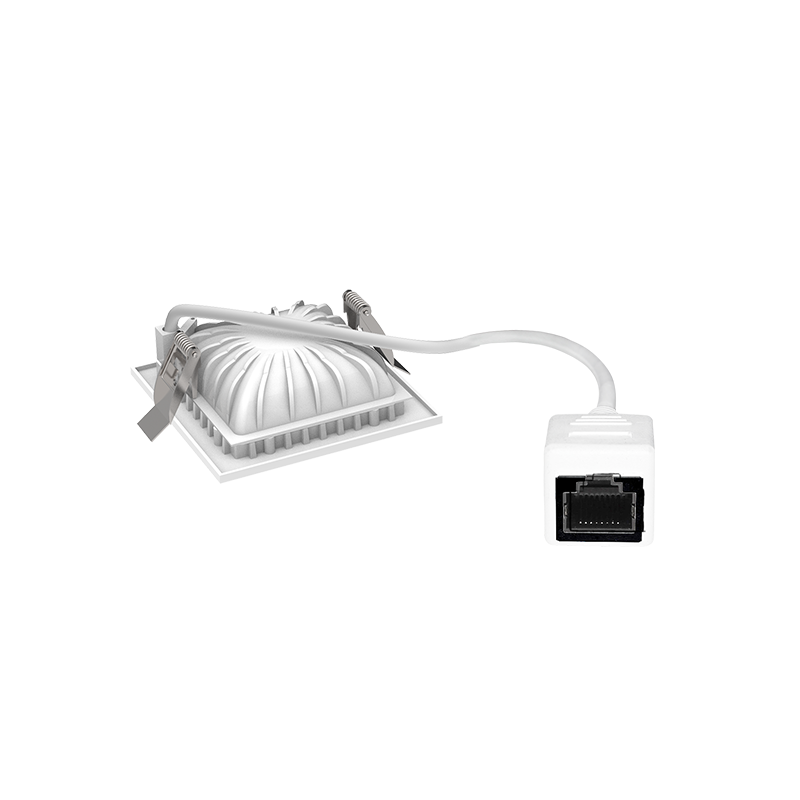

4″ LED Recessed Square LED Ceiling Dome Light with RJ45 Adaptor
ITEM No.： BL4-S401A
Shape : Square
Input Voltage : 24V(PoE Scheme)
Lumen : 800lm
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K/3CCT/5CCT
Lifespan : 100000 Hours LED Dome Light
DESCRIPTION
Liteharbor Interior Dome Lights are designed to reduce targeting and improve design for better quality light. Gentle light comes out after reflected through reflector, to achieve soft lighting without seeing the light source, replaced direct lighting, like a moon hanging on the ceiling. Lights are available with LED Lighting technology and offer a stylish sleek appearance.
FEATURES
- PoE scheme or LED quick connector provided.
- Die cast aluminum body material with good heat dissipation.
- Higher reflection rate Reflector with nano powder sprayed on surface
- New construction is optional, no housing required
- Can be installed in 0.5 “to 1.25” thick ceilings
- Robust, durable and lightweight.
- 3CCT/5CCT range changeablen,convenient inventory and cost savings.
- 1/2″ Thin – Install Directly Under Joists, Maximum Layout Flexibility.
- Connection: RJ45 Adaptor suitable for CAT6/CAT7/CAT8 cables
- Easy to install to suspended ceiling grids
- No UV, IR or Mercury
- Anti-glare
SPECIFICATION
| DESCRIPTION | BL4-401A | BL4-S401A | BL6-401A | BL6-S401A | ||||||||||||||||||||||
| Wattage | 8W | 14W | ||||||||||||||||||||||||
| Luminous Flux | 800lm | 1400lm | ||||||||||||||||||||||||
| Lumens / Watt | 100lm/w | 100lm/w | ||||||||||||||||||||||||
| CRI | 90+ | 90+ | ||||||||||||||||||||||||
| Colour Temperature | 3000K, 4000K, 6500K/3CCT/5CCT/RGBW | 3000K, 4000K, 6500K/3CCT/5CCT/RGBW | ||||||||||||||||||||||||
| Driver Input | DC 24V | DC 24V | ||||||||||||||||||||||||
| Dimming | RGB+W / Tunable White | RGB+W / Tunable White | ||||||||||||||||||||||||
| Location | Insulated Ceiling & Damp Locations | Insulated Ceiling & Damp Locations | ||||||||||||||||||||||||
| Finish | White,Black | White,Black | ||||||||||||||||||||||||
| Wire | Cat5/Cat6 | Cat5/Cat6 | ||||||||||||||||||||||||
| Working Temperature | -20°C to +50°C | -20°C to +50°C | ||||||||||||||||||||||||
| Working Humidity | 10% – 70% | 10% – 70% | ||||||||||||||||||||||||
| IP Rating | 20 | 20 | ||||||||||||||||||||||||
| UGR | <18 | <18 | ||||||||||||||||||||||||
| Beam Angle | 120° | 120° | ||||||||||||||||||||||||
| THD | <20% | <20% | ||||||||||||||||||||||||
| Installation | Recessed Ceiling Mount | Recessed Ceiling Mount | ||||||||||||||||||||||||
| Lifespan | 50,000 Hours at 70% Light Output | 50,000 Hours at 70% Light Output | ||||||||||||||||||||||||
| Executive Standard | ETL | ETL | ||||||||||||||||||||||||
| Warranty | 3 Year Limited for Fixture & Driver | 3 Year Limited for Fixture & Driver | ||||||||||||||||||||||||
APPLICATIONS
- hospitality
- Retail
- Kitchens
- hotels
- Museum
- indoor / outdoor residential,
- offices
- Commercial
- shopping mall stores
POE SOLUTION
Liteharbor PoE solution with single/double ethernet interface“One in” or “One in One out”design. It’s provides RJ45 wiring system suitable for CAT5, CAT6, CAT7, CAT8 Ethernet Cable with UL listed . PoE technology sends 10/45 Gbps of data and 30W, 60W up to 90W of power budget to devices over Cat7 and Cat8 Ethernet cables for a maximum distance of 100m.
LISTING / WARRANTY
- ETL to US and Canadian standards for damp location W/Feed through.
- 3 Year Limited Warranty.
