3 Inch New Construction Square Recessed LED Retrofit Trim
ITEM No.: BL3-920-S-NC
Size: 3 Inch
Wattage: 12W Max
Volatge: 110/277V AC
CCT: 2700K-6000K
Type : New Construction
Description
Use cold forging radiator with good heat dissipation.
Peculiar vortex type outlet, to ensure that the light is soft, avoid glare, unique irregular shape make an impression.
Independent power supply box, easy to maintain and replace.
Brand chip and isolated power supply, safe and reliable.
Dimming available, can be matched a variety of light regulator,dimming stability, no strobe.
Square outer ring is optional.

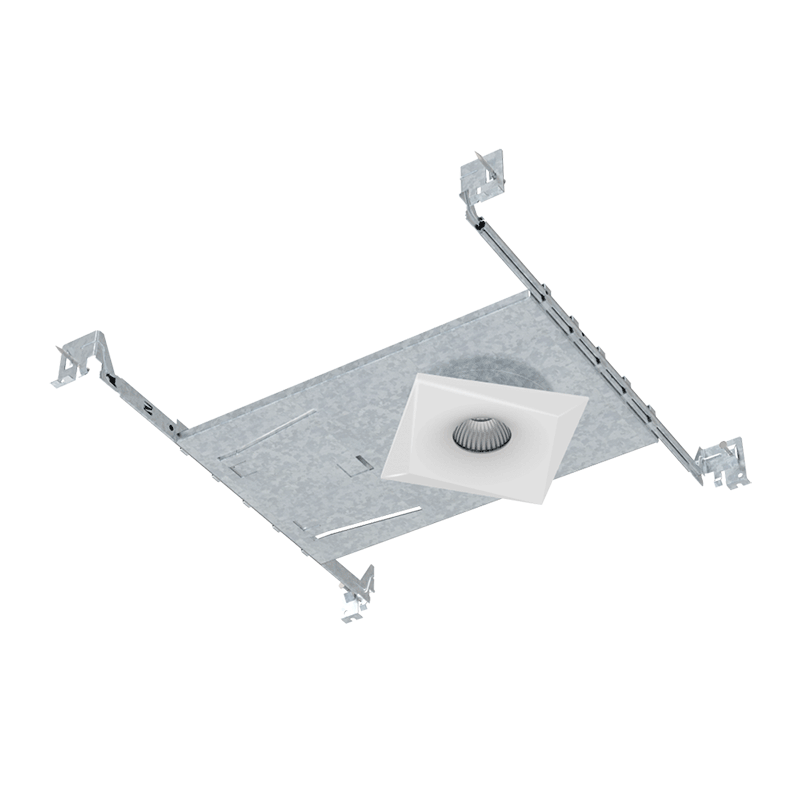

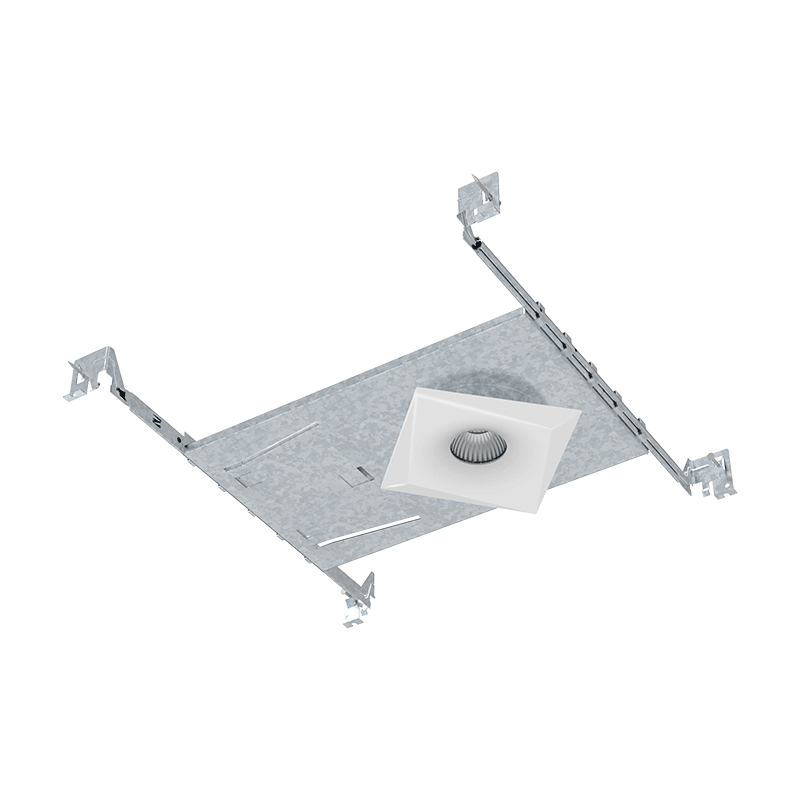

Mounting & Clips
New construction is optional.
Can be adapted to the 0.5 “to 1.5” ceiling.
Easy installation, tool-free and save time.
Various installation clip for choose.
Two Clips Type: Install with no housing required.
Three Clips Type: Install with housing required.
Light Engine
COB LED
Input Power: 12W Max
Input Voltage: 110V/277V AC 50/60 Hz
PF: >0.98
CRI:80+/90+
CCT: 2700-6000K
None Dimmable or TRIAC Dimmable
Lumen Efficiency: 100lm/W
Finish: Black/White/Satin Nickel
Listing & Warranty
ETL listed to US and Canadian standards for wet locations
5-Year Limited Warranty.
Packing
CTN Size: L: 405×W: 455×H: 265mm
Inner Box Size: L: 130×W: 110×H:120mm
24PCS/CTN
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
BL3-920-S-NC BL4-920-S-NC
|
liteharbor | 579 KB | 366 |
