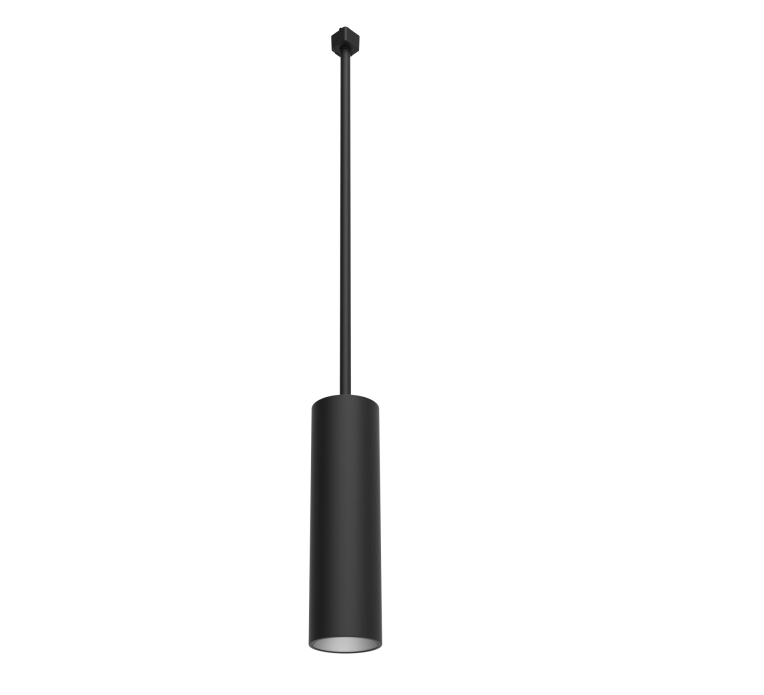

J/H/L Track System Villa lighting 3CCT Cylinders LED Track Pendants
ITEM No.： AL35-VA-FM
Series : LED Pendant Downlight
Wattage : 10W/16W/20W
Light Source : LED
CCT : 2700-6000K
Shape : Cylinders
Description
Commerical LED Pendant Mount Down Light is designed for higher wattage capabilities and indoor and outdoor use. 80+/90+ CRI is available.The precision designed using advanced proprietary LED technology with a built-in reflector . The Cylinder can be specified as a track spot, canopy spot, surface mount cylinder or a pendant. It features optional lens and glare reduction accessories. It is offered in black or white matte finish.An appealing cylindrical profile with powerful LED lighting is perfect for commericial and residential applications.
Features
– Sleek, high performance pendant complements pendant downlighting family.
– Unique flush, surface mount design allows for precise alignment and adjustment.
– All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications.
– 120V AC Direct technology in 10W, 16W or 20W dimmable modules with integrated circuit.
– Easy installation and ultra energy efficient.
-3CCT range changeablen,3000K, 4000K and 5000K , convenient inventory and cost savings.
– Dedicated 9° optic with field changeable 12°, 24°, 36° & 50° optics.
Specifications
Material: Die cast aluminum
Input Voltage: 120/277v 50/60Hz input
Wattage: 10/16/20W
CCT: 90 CRI & 80 CRI in 2700K, 3000K, 3500K and 4100K
PF: >0.98
Shape: Cylinders
| Material | Die cast aluminum |
| Input Voltage | 120V-277V 50/60Hz input |
| Wattage | 10W/16W/20W |
| CCT | 2700,3000K,3500K,4000K,5000K,6000K,3CCT |
| PF | >0.98 |
| CRI | 80+/90+ |
| Mounting | Track Pendant Mount |
Mounting
Pendant mounted.
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
AL35-VA-FM
|
liteharbor | 170 KB | 409 |
