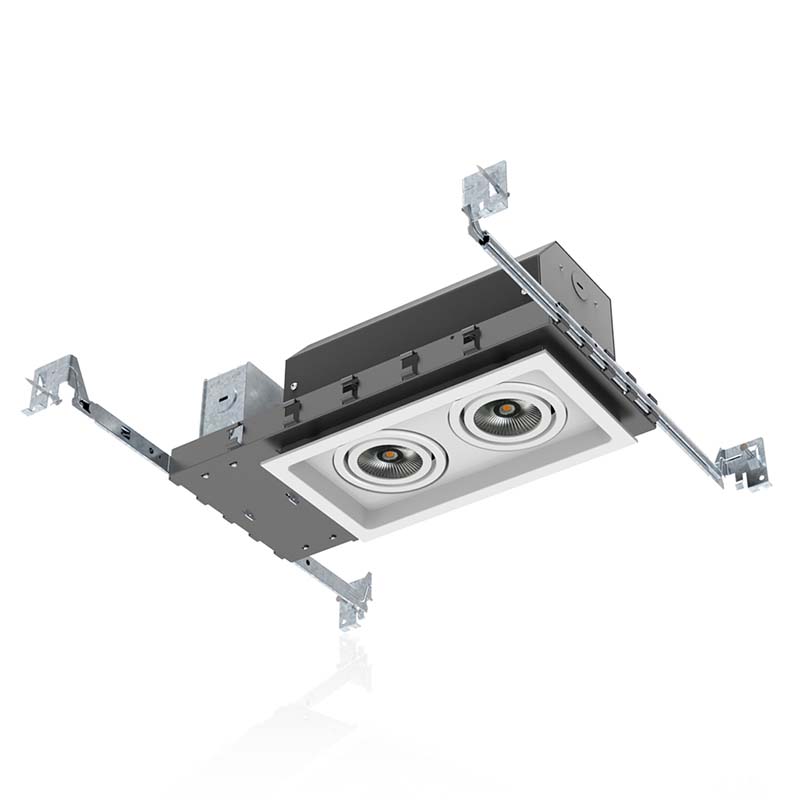

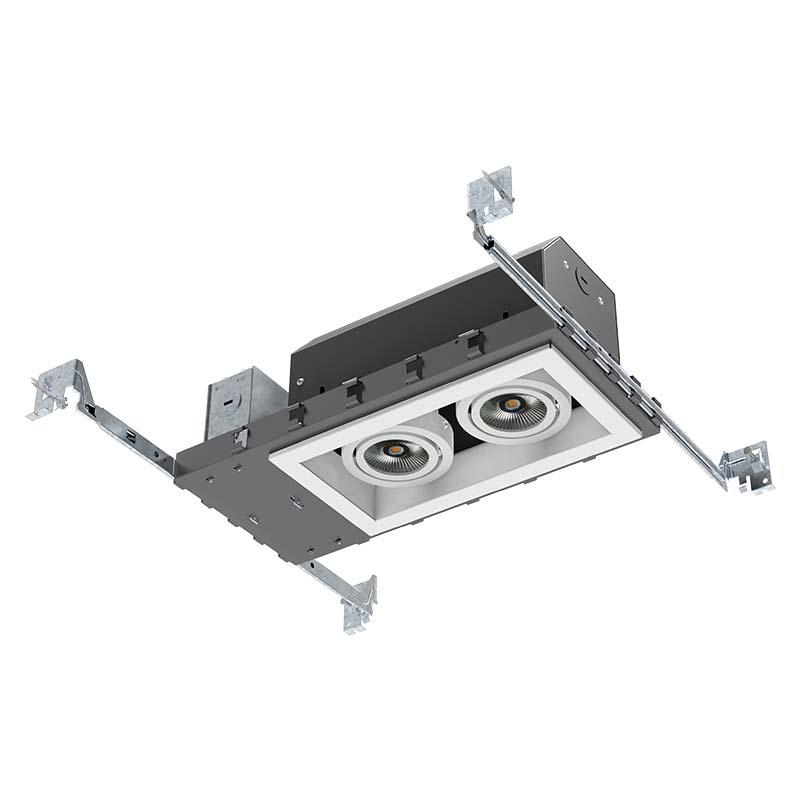

2-Lamp New Construction Mini Multiple COB LED Recessed Downlight
ITEM No.： G4012-E-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 110V-277V
CCT : 2700-6500k
Material : Gauge Steel

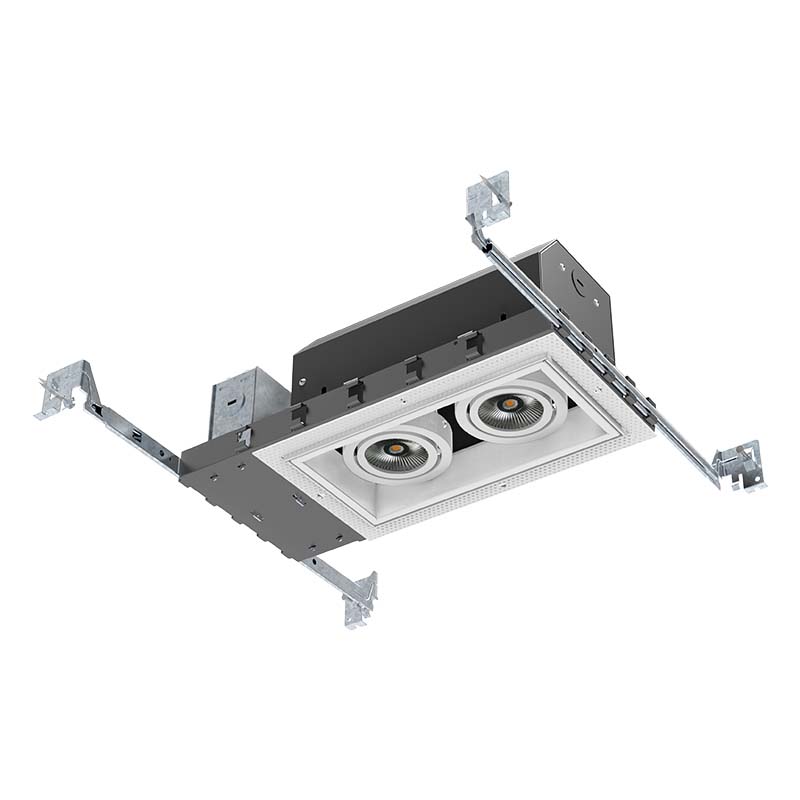

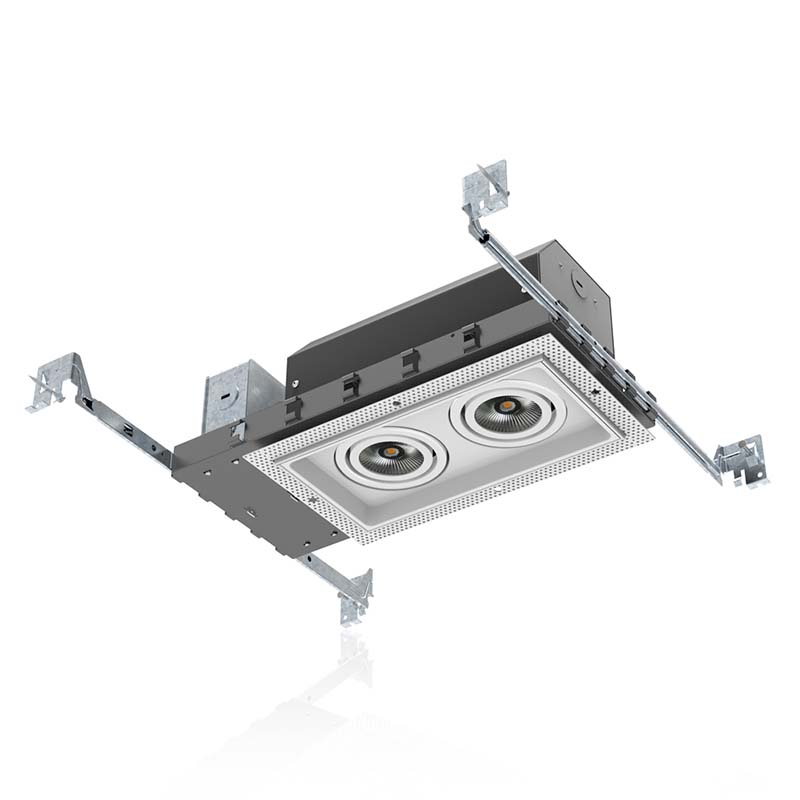

Trim Options : Trimmed or Trimless

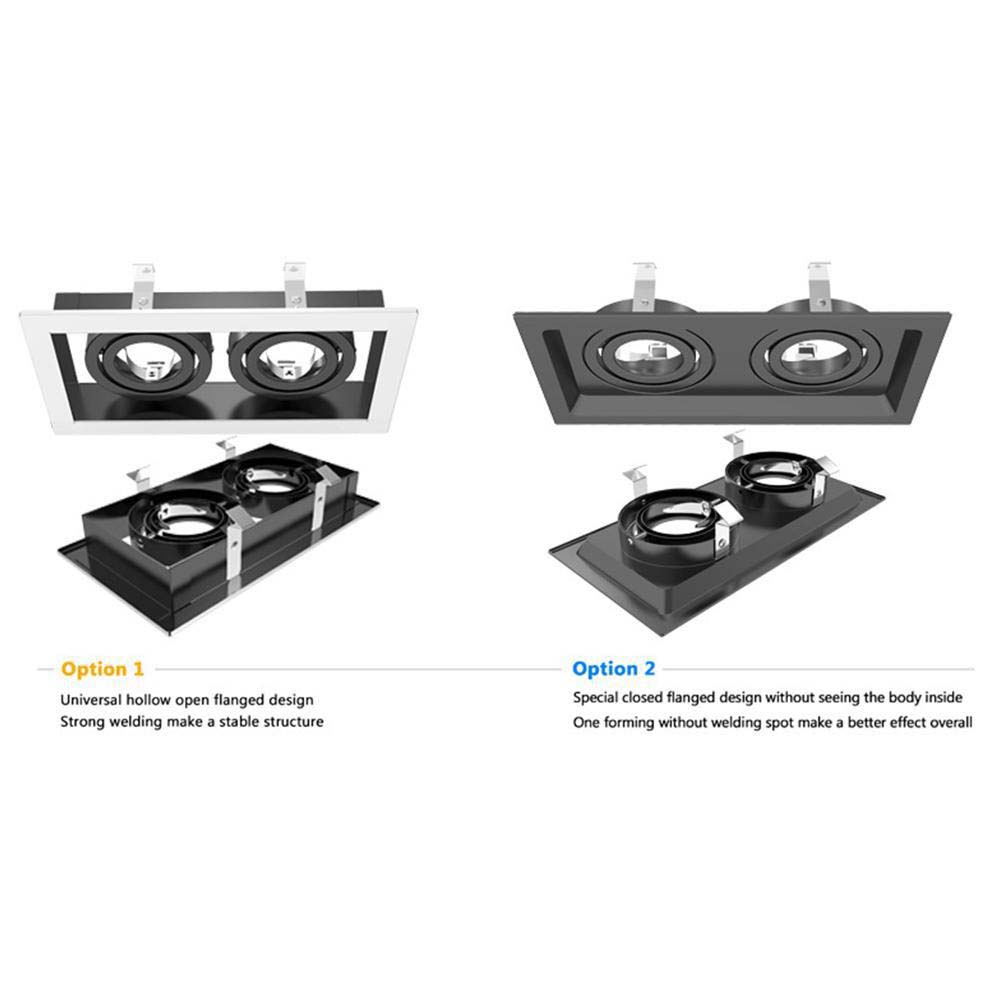

Trim Baseplate : Open or Closed Design
Description
Mini LED Multiple Spots for remodeling and new construction applications for residential and commercial environments.The Multiple Spots are marketed as complete units including the housing and trim. Available as one, two and three-light configurations, each spot is individually adjustable and provides a 30-degree visual cutoff for glare control and 3CCT Switch.
Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation
Construction
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.
Mounting
Supplied with 4 ways hanger bar, adjustable from 14½”-25″ to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting “screw-nail” for ease
installation. Can be accommodate a 1/2″ to 1 1/4″ ceiling
thickness.
Light Source
High output COB LED Chips
| LED LIGHT ENGINE |
| – 2700K, 3000K, 4000K,5000K and 6000K , 80CRI/90CRI Option |
| – Class A – 3CCT, provides 3000K-4000K-5000K option |
| – Class B – 3CCT, provides 2700K-3000K-3500K option |
| – LED mounted to die-cast / extruded aluminum heat sink |
| – Rated life of 50,000 hours L70 based on LED testing per |
Dimming
Dimmable to 10% with most brand dimmers.
| FRAME-IN (CAN BE ORDER SEPARATELY) |
| Frame-in types include IC Air-Tight, CCEA (Chicago Plenum), |
| or Non-IC Rated (must specify). Non-IC rated housings must |
| be kept at a minimum of 3” away from insulation. Frame-in |
| is equipped with quick connect to trim assembly for easy |
| installation. Junction box is accessible from below the ceiling. |
SPECIFICATIONS
| Item | G4011-E1-COB | ||||||||||
| Input Voltage | AC 90-305V 50/60Hz | ||||||||||
| Luminous Efficiency | 70 LM/W | ||||||||||
| Lumens | 700lm | ||||||||||
| Color Temperature | 2700-6500K | ||||||||||
| Material | Gauge Steel | ||||||||||
| Power Factor | ＞ 0.98 | ||||||||||
| Rated Power | 10/Lamp | ||||||||||
| Dimming* | Triac Dimming/0-10V Dimming | ||||||||||
| Lamp | COB | ||||||||||
| Color Temperature | 2700-6500K/3CCT | ||||||||||
| Finish | Black or White powder coat | ||||||||||
| General Listing | ETL listed. Damp listed. |
Product File Download
| # | File | Added by | File size | Downloads |
|---|---|---|---|---|
| 1 |
G401X-E-COB
|
liteharbor | 2 MB | 1070 |
| 2 |
G401X-E1-COB-3CCT
|
liteharbor | 2 MB | 334 |
