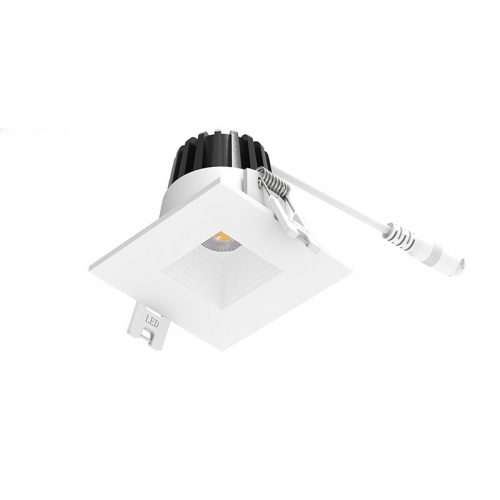

2 Inch Square IC Airtight New Construction Miniature LED Downlight
ITEM No.： BL2-S001-IA
Series : Miniature LED Recessed Downlight
Wattage : 8W
Lumens : 800-1000lm
Beam Angle : 30D/60D/90D
CCT : 2700K-5000K
Features
– The simplified retrofit installation can be used in both new and existing spaces.
– IC Airtight for use with direct contact to insulation.
– 1 inch light-emitting surface.
– Beam Angle: 30/60/90 Degrees.
– Life Rated for 50,000 hours at 70% lumen maintenance.
– Easy installation for new construction and remodel applications.

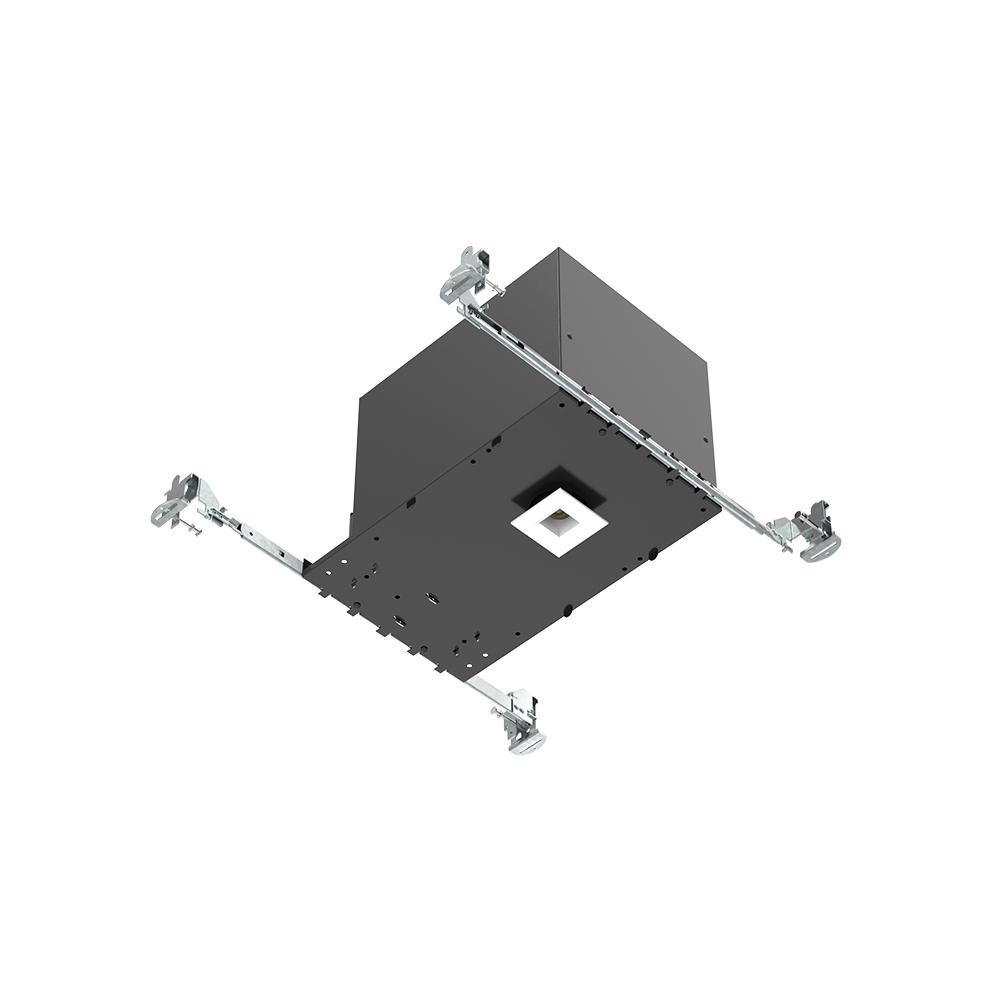

Construction
– Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
– Housing adjusts in frame to accommodate up to 1/2″ ceiling thickness.
– Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Installation
– Designed for ceiling plenums where 2×8 joists or taller are used.
– High strength hanger bars can easily be nailed to joists.
– Suitable for T-grid and drop ceiling applications.
Specification
– Source: LED COB Chips.
– Lumen maintenance: 50,000 hours L70 based on LM80 standardized test results.
– Optics: PC Lens for even lumen distribution.
– Material: Die-cast aluminum construction for lasting quality.
– Mounting: New construction installation or remodel installation
– Electrical: High efficiency electronic driver, rated at 50 000 hours
– Heat dissipation: Superior Thermal Management by utilizing aluminum body as heat sink.
– Warranty: 3 year limited warranty.
Electrical
– High Efficiency driver with a power factor > 0.9.
Parameter
Voltage: AC/DC12V
Watt: 8W
Dimming: Non-dimming
Lumen: 800-1000lm
Light Source: COB
CRI: 80/90+
Beam Angle: 30D/60D/90D
CCT: 2700K-5000K
Finish: White/Black/Brown
Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.
Applications
Suitable for jewelry stores, boutiques, luxury goods stores, shopping malls and other places that require concentrated lighting and accent lighting.
