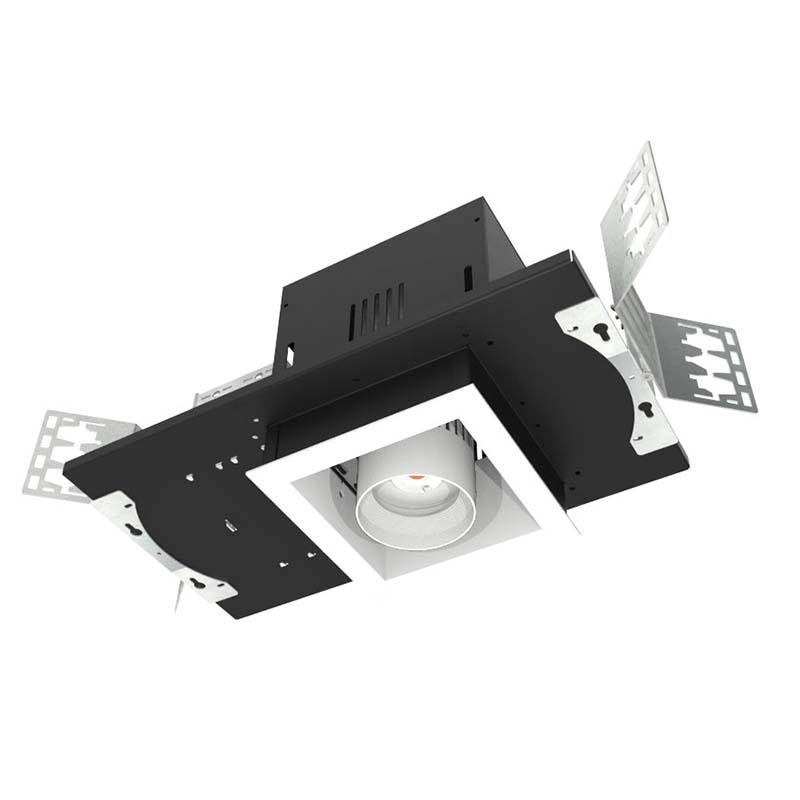

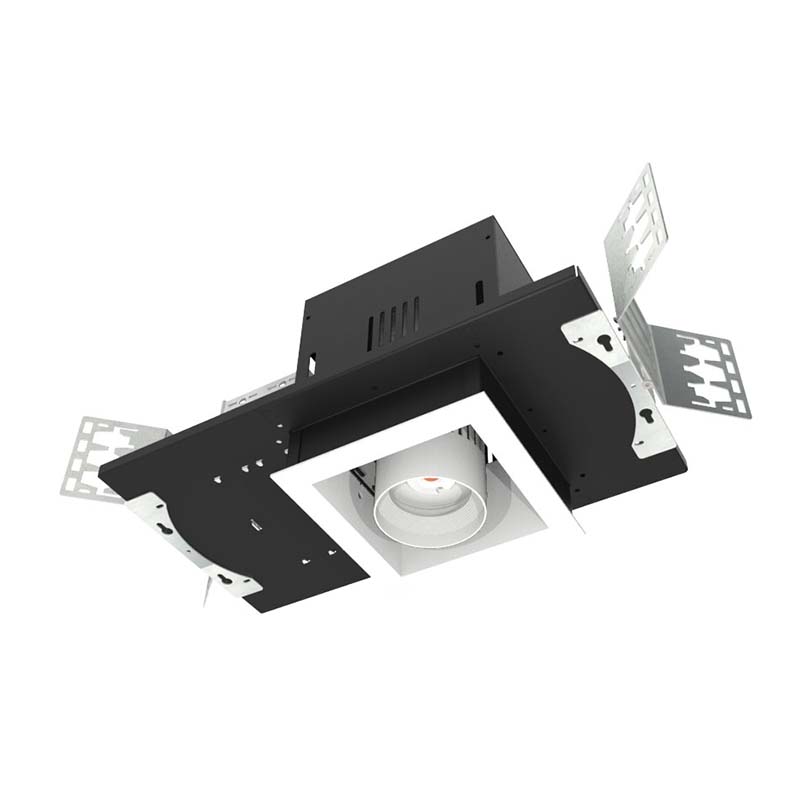

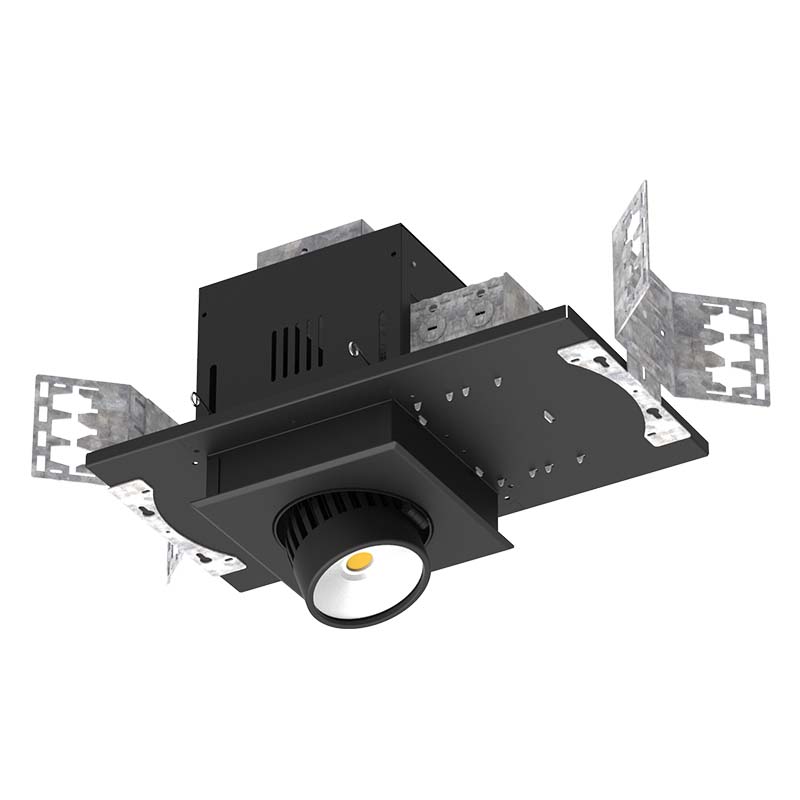

1-Lamp Retractable Commercial Multiple Recessed Downlight Hotel Lighting
ITEM No.： G4011-D1
Series : Multiple Light
Light Source : COB LED
Light Qty : 1/ 2/ 3/ 4 lights
Watt(W) : 16W/ Lamp
Lumen : 1200/ Lamp
Description
LED Recessed Downlights are designed with state-of-the-art LED and driver technology. All of the models feature high end, Architectural Spec quality with the energy efficiency and all the advantages of a LED source. The multiple downlight series are for new construction and are offered in 1 to 4 lamp versions. Collection of multi-lamps directional LED downlights for commercial and institutional applications.A recessed multiple combo light with unlimited features with precise, glare-free illumination. Each individual luminaire has full aiming adjustability pivot that locks into place at any desired position.
Application
Accent and display lighting for retail, commercial and hospitality environments
Features
Pull LED Trim and Trimless Multiple Recessed Downlights
Offered in 4 configurations: 1-light; 2-light; 3-light; and 4-light

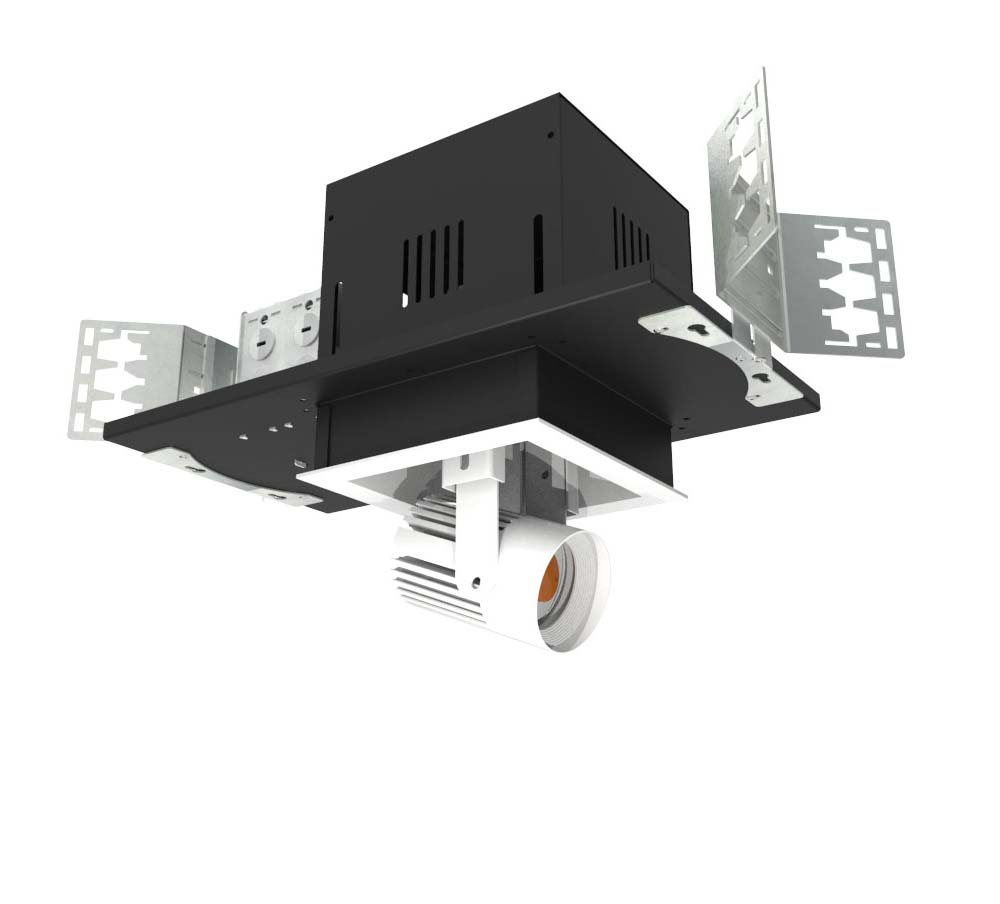

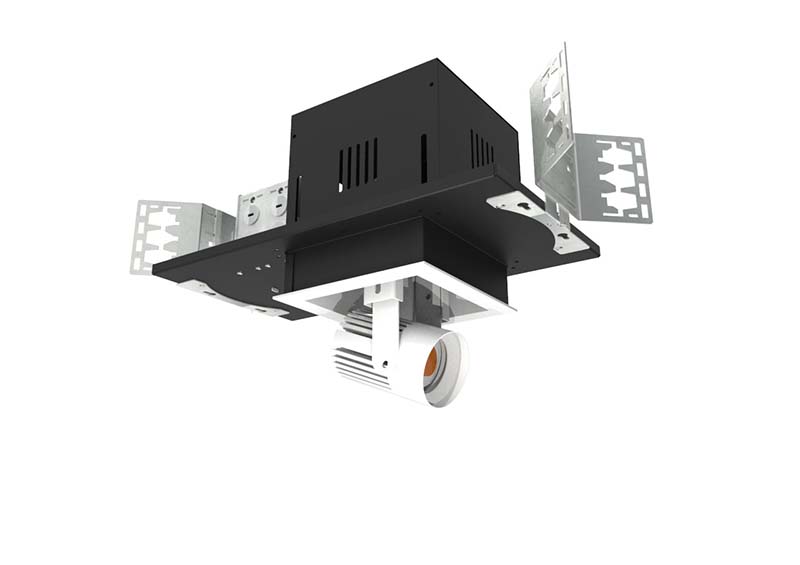

Can be fully recessed or semi recessed heads that allow for higher aiming angles
Allow for 30-degrees across, with a 45-degree tilt and a 360-plus degree rotation.
Combine the aiming flexibility of track with the look of recessed, maintaining a more consistent, inconspicuous aesthetic and more compelling experience for end-users.
High performance lighting applications are effectively achieved from above a smooth, uninterrupted surface, for a clean, unobtrusive aesthetic.

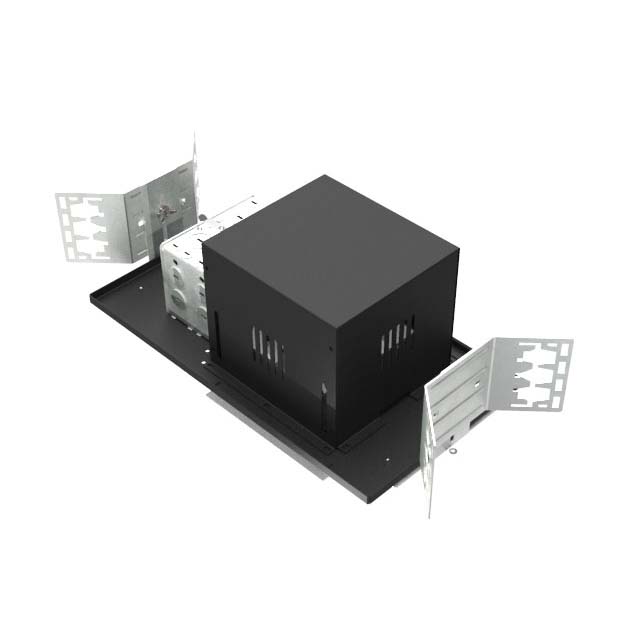

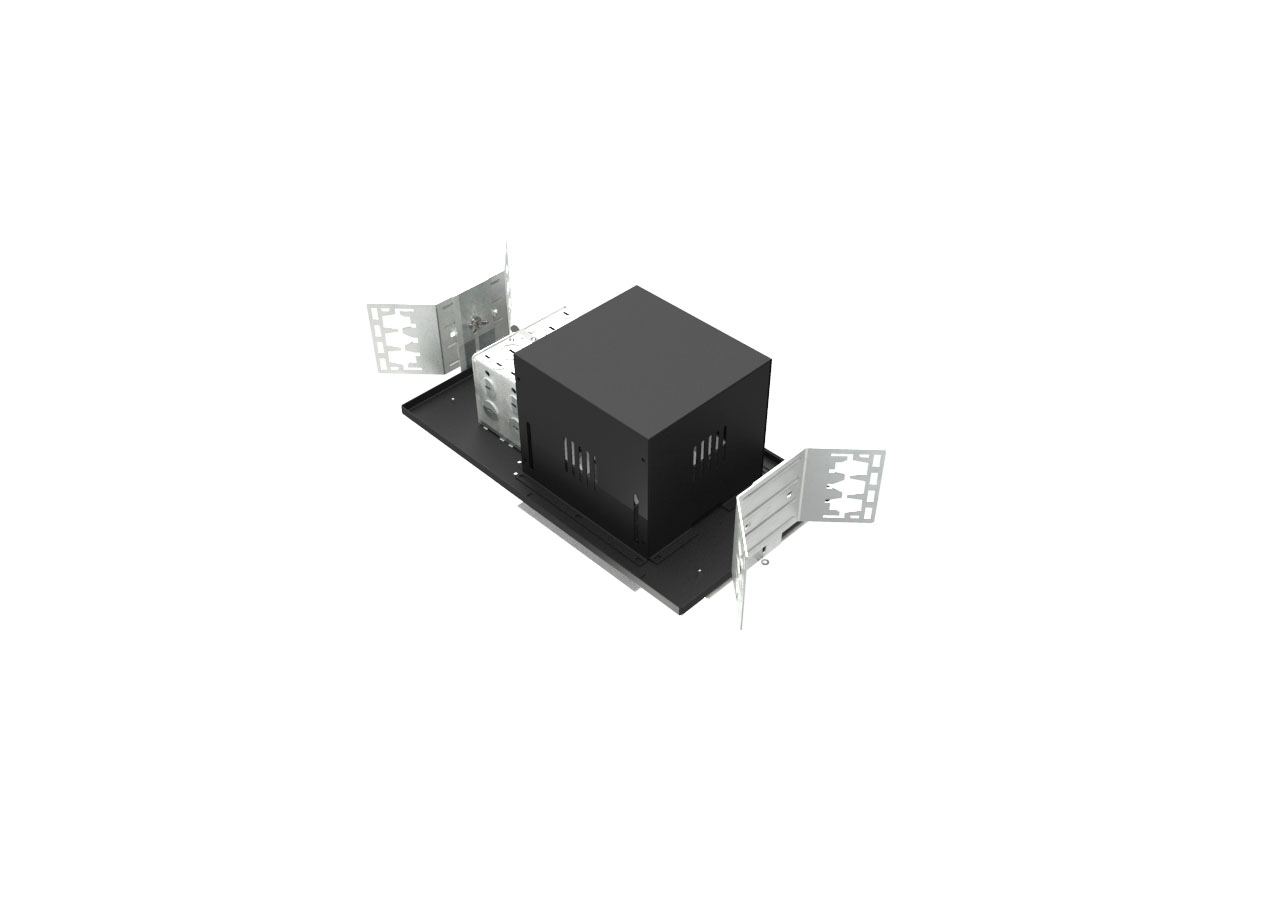

Construction
Die-cast aluminum heat sink painted white, black, silver or customized finsh.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box
Seven knockouts and four Romex® style wiring connectors provided for ease of installation.
Rated for branch wiring.

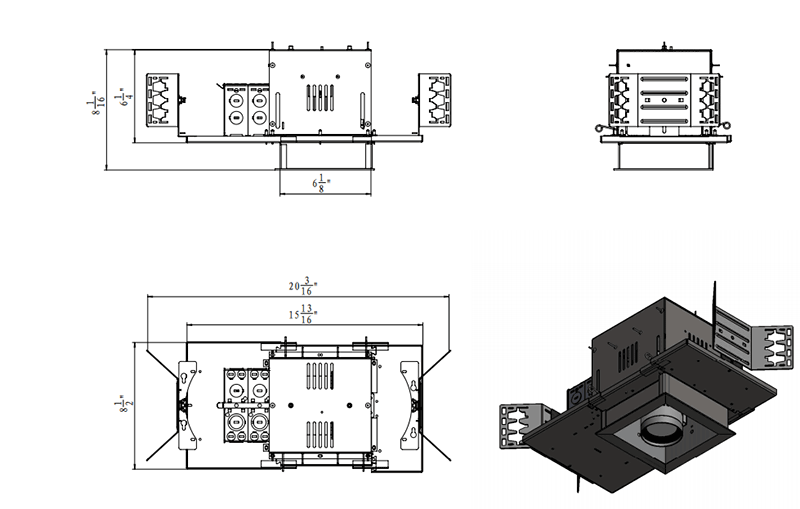

Mounting
Luminaire can accommodate up to 1” ceiling thickness.
Luminaire is supplied with butterfly brackets to allow up-to 3” vertical adjustment.
Compatible with C-channel, flat bar, wood joist bar and EMT. Bar hangers must be ordered separately.
C-channel is recommended for T-bar ceilings.
Max. Ambient temperature: 122°F (50°C).
Electrical
Electronic constant current LED driver,
120v – 277v input ELV and Triac dimming standard
120v & 277v 0-10v and Lutron systems also available
LED mounted to die-cast / extruded aluminum heat sink
Rated life of 50,000 hours L70 based on LED testing per LM-80-08 and projected values using IESNA TM21-11
2700K, 3000K, 3500K and 4100K
>80 CRI
OPTICS
12° Spot,
24° Narrow Flood,
36° Flood
Customized
Dimming
Dim to 10% with electronic low voltage (ELV) dimmer (120V only).
0-10V dimming for 120V and 277V
Electrical constant current LED driver
Over voltage, over current and short circuit protection
This product complies with IEEE C62.41 for surge endurance up to 2.5KV.
Additional surge protection recommended.
Damage from power surge is not covered by warranty.
Power factor >.9, 50/60Hz
Emergency (available)
Emergency driver operates LED load of up to 7.0 watts at a nominal 450 lumens for a minimum of 90 minutes.
Listing/Warranty
ETL listed to US and Canadian standards for damp locations.
